SENSING & MACHINE VISION
We support sensing, machine vision, camera auxiliary source and custom NIR module projects with VCSEL bare die, SMD VCSEL, diffuser-integrated packages, VCSEL arrays and FR4 PCB board-level source options.
This solution focuses on 850nm, 940nm and 1064nm NIR source directions, with project discussions around 808nm high-power NIR, VCSEL bare die on FR4 PCB, custom diffuser, FOV control, VCSEL array and custom NIR modules.
APPLICATION PLATFORMS
Sensing and machine vision projects usually require a stable NIR source, suitable wavelength selection, controlled beam angle and spot distribution matched to the camera or detector.
850nm, 940nm and 1064nm can be used for different camera, imaging and sensing source projects. We have project experience using 1064nm VCSELs for camera-related NIR sources, and also direct VCSEL bare die assembly on FR4 PCB for cost-sensitive source designs.
PRODUCT DIRECTIONS
This page focuses on 850nm, 940nm and 1064nm camera and sensing sources, mainly using VCSEL bare die, SMD VCSEL, diffuser-integrated packages and FR4 PCB board-level sources, with VCSEL array and custom NIR module options.
850nm can support machine vision, camera auxiliary sources, ALPR / ANPR and industrial inspection, offering a practical balance between camera response, working distance and optical efficiency.
940nm can support compact sensing and short-range camera applications where lower visible red glow is preferred, including compact sensing modules, consumer electronics and low-visible-glow systems.
We have project experience using 1064nm VCSELs for camera-related NIR source applications. 1064nm can support selected camera auxiliary sources, custom detection modules and longer-wavelength sensing directions.

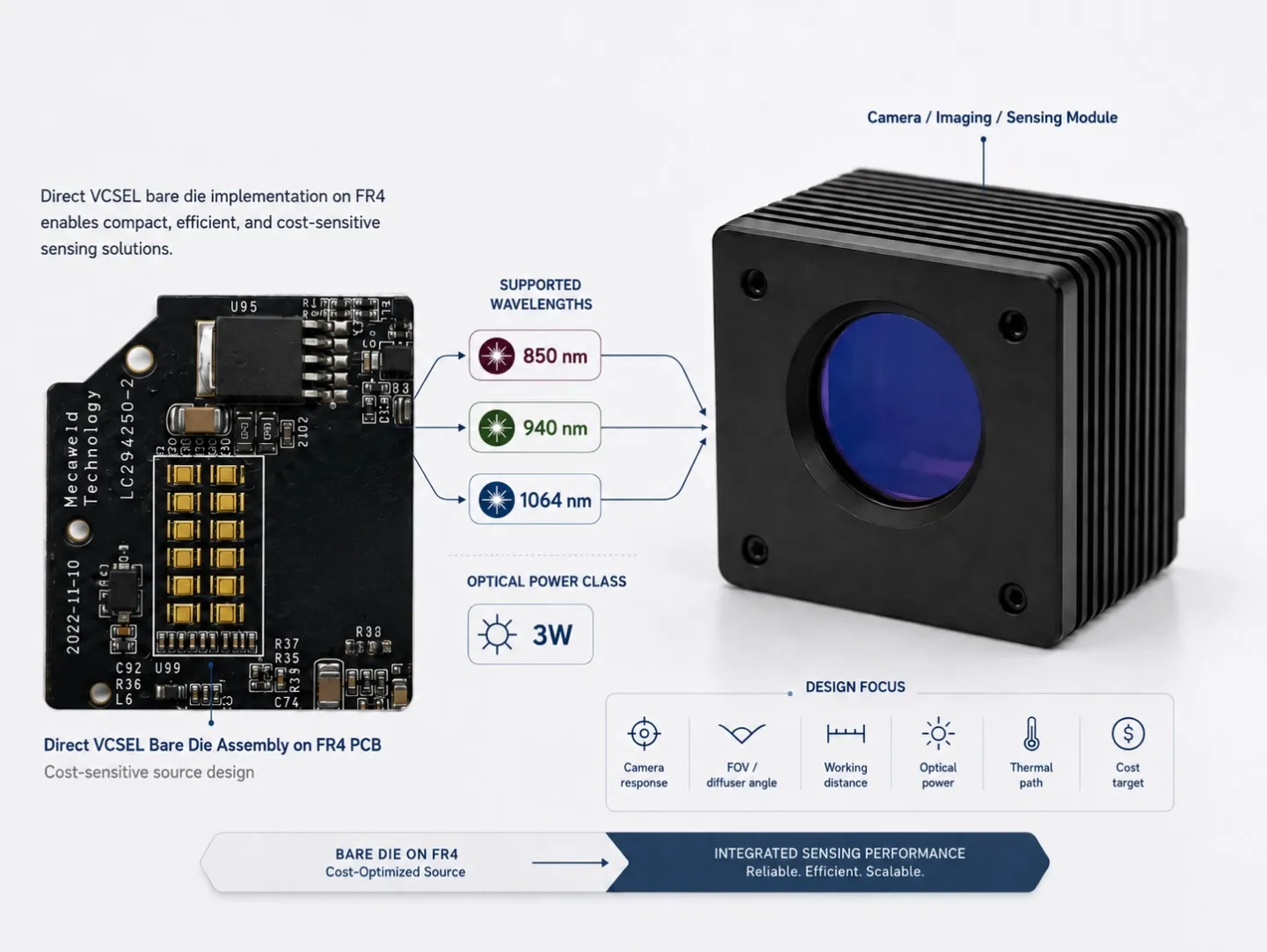

We have project experience with VCSEL bare die directly assembled on FR4 PCB, supporting cost-sensitive camera auxiliary and sensing source designs while reducing package and module cost.
We have VCSEL integrated diffuser project experience. FOV directions such as 40° × 30°, 60° × 45°, 90° × 70°, 118° × 20° and 120° × 20° can be discussed for camera, machine vision and sensing modules.
VCSEL arrays can support multi-point sources, structured light, sensing arrays and customer-specific spot distribution projects. Layout, pitch, emitter count, connection method and drive mode can be discussed by project.

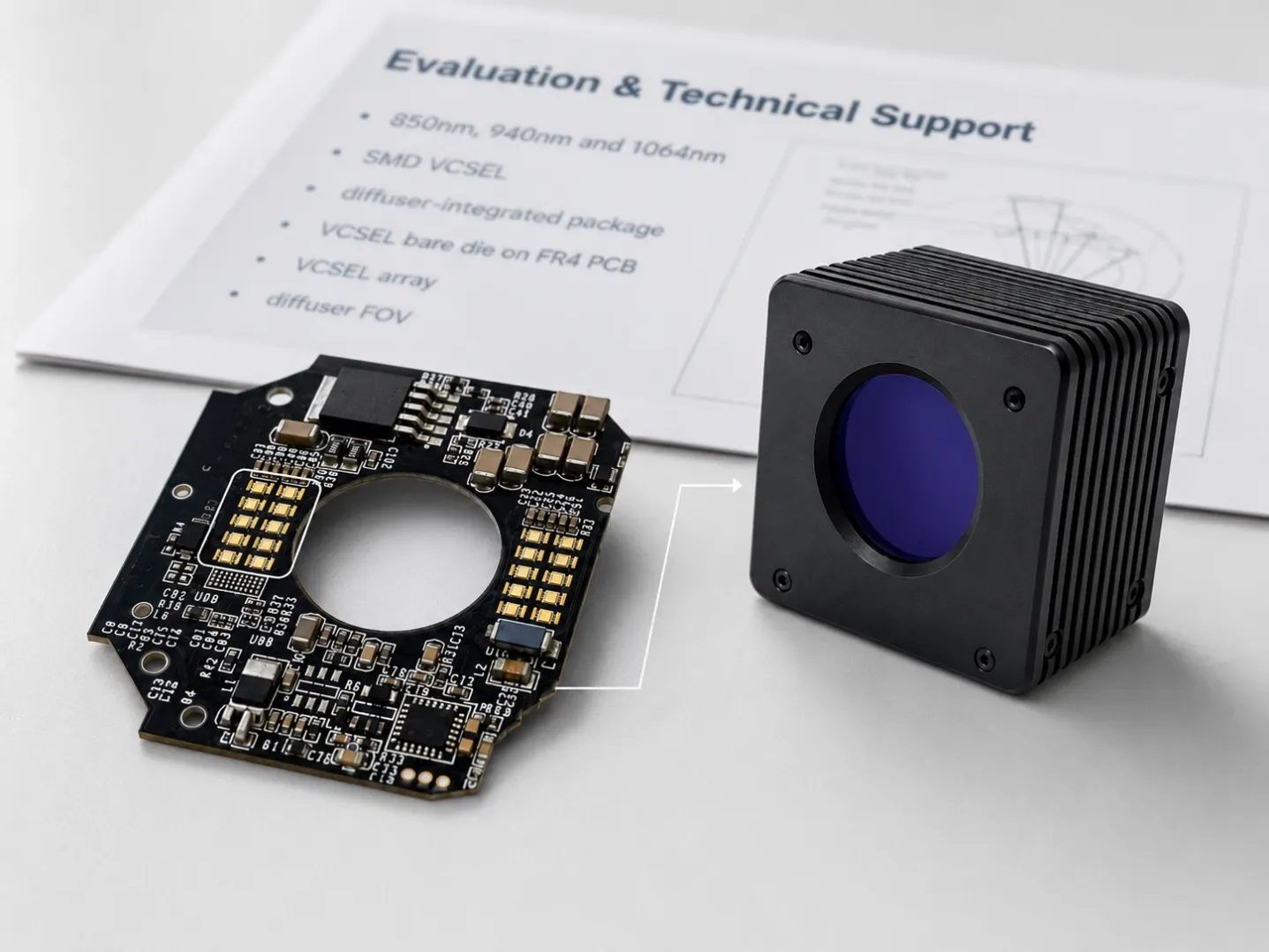

EVALUATION & CUSTOM SUPPORT
Machine vision and sensing source projects should first confirm wavelength, optical power, camera or detector type, FOV, diffuser, working distance, package size, thermal method and cost target.
For 850nm, 940nm, 1064nm or 808nm projects, we can discuss samples, SMD VCSEL, diffuser-integrated package, VCSEL bare die on FR4 PCB, VCSEL array, diffuser FOV, output window and custom NIR module directions.
NEXT STEP
Send us your target wavelength, camera or detector type, working distance, FOV, diffuser needs, optical power, package form, FR4 PCB cost-optimized requirement, module size, application direction and current project stage.
Custom NIR optical source discussion for sensing, machine vision, camera auxiliary source, diffuser and VCSEL array module projects.
