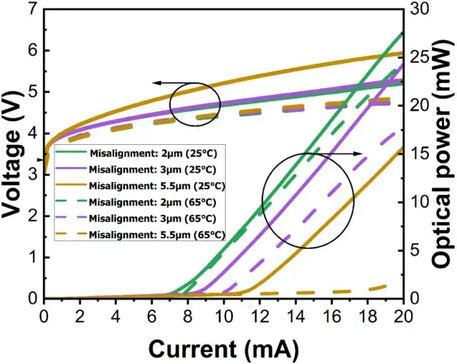

Co-Packaged Optics (CPO) is gaining momentum in AI/HPC data centers as a way to shorten electrical reach and improve bandwidth density within tight power and thermal budgets. VCSEL arrays are attractive multi-channel light sources, but system viability depends heavily on packaging rather than the emitter alone—especially as channel counts and integration density increase. This article explains why flip-chip bonding with micron-scale Au bumps is a practical integration path for compact optical engines, and highlights how Au-bump planarization and alignment accuracy influence contact quality, stress concentration, and repeatable assembly outcomes. The goal is to frame these packaging variables as manufacturability and reliability levers for next-generation data-center interconnects.

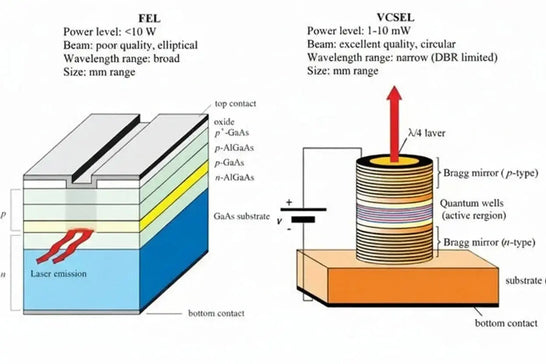

As 3D sensing moves toward longer ranges and higher integration, traditional light sources face critical bottlenecks in thermal stability and eye-safety regulations. This technical insight explores how VCSEL (Vertical-Cavity Surface-Emitting Laser) innovation—specifically through Multi-Junction stacking, 1550nm wavelength engineering, and Ceramic Substrate (COB) integration—is overcoming these limits. By matching the Coefficient of Thermal Expansion (CTE) and maximizing power density, these advanced architectures are paving the way for next-generation solid-state LiDAR, under-display biometrics, and ultra-high-bandwidth AI optical interconnects.
