Understanding 808nm Laser Chips for Medical and Industrial Applications

🧠 About This Product

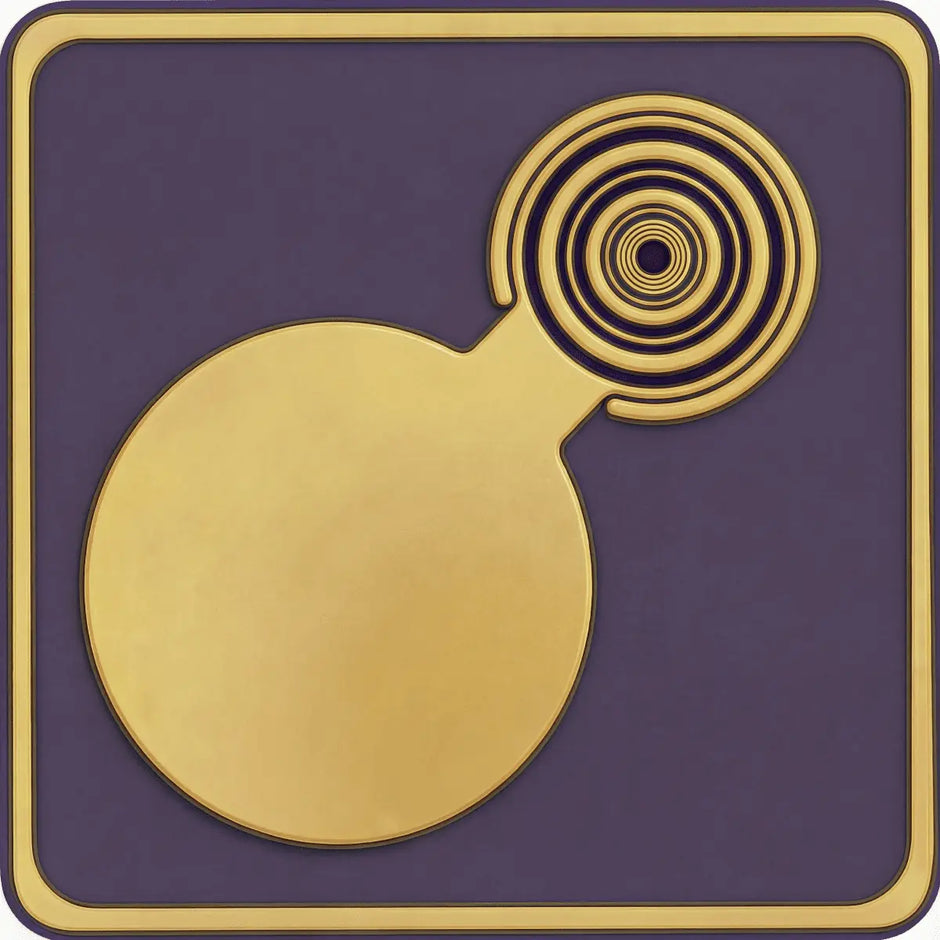

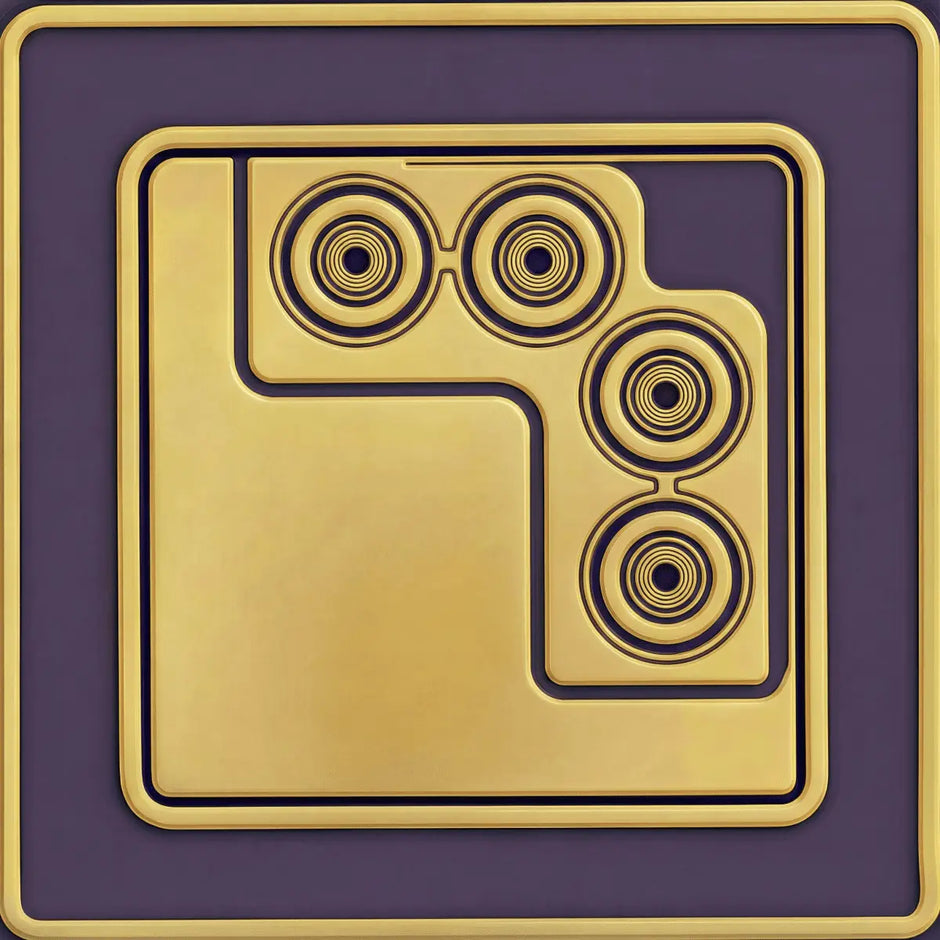

808nm VCSEL (Vertical-Cavity Surface-Emitting Laser) emitter chips provide efficient near-infrared emission with model-dependent wavelength range, beam divergence, and electro-optical characteristics. This 808nm portfolio covers 11 power options from 5mW to 3W, supporting integration from compact sensing illumination to higher-power optical/thermal subsystems. Bare-die options are available, and we support SMD/COB packaging and project-based customization from R&D to mass production.

808nm is widely used across Nd-doped solid-state laser pumping (e.g., Nd:YAG / Nd:YVO₄), NIR sensing illumination, and certain thermal processing/industrial applications. These VCSEL chips provide a more symmetric circular beam profile (system-dependent) compared with typical edge-emitters and a more concentrated divergence than LEDs (model-dependent). For pumping architectures, narrow spectral width (model-dependent) and low wavelength temperature coefficient dλ/dT (typ. ~0.059–0.073 nm/°C, where specified) support system-level wavelength budgeting.

Key differentiators:

• Wide power range: 5mW → 3W (11 models)
• High PCE: up to ~46% (typ.) in low-power models; ~35–42% (typ.) in mid/high-power models
• Compact die sizes: ~140µm to ~1120µm (model-dependent)
• Symmetric circular beam: More symmetric beam profile simplifies optical design vs edge-emitters
• QCW and CW options: D-V0808M-2000-0042 is CW-specific
• Wavelength range: model-dependent (see datasheet)

Project-dependent screening/traceability & compliance documentation available upon request.

💡 Application Scenarios

System performance depends on optical design, drive conditions, thermal design, and regulatory/safety requirements.

• Solid-State Laser Pumping
  Optical pumping for Nd:YAG / Nd:YVO₄. Coupling efficiency depends on crystal type/doping, temperature, wavelength binning, and optical alignment.
• Industrial Sensing / NIR Illumination
  Material inspection, reflective sensing, spectroscopy. Outdoor environments require optical filtering and/or modulation/demodulation.
• Industrial Thermal / Selective Heating
  Plastic welding, soldering, localized heating where optical power density and thermal management are engineered at system level.
• Medical/Professional PBM System Integration
  808nm commonly used in PBM development. Efficacy/safety depends on complete device design (device-level validation required).
• Optical Sensing & Spectroscopy
  NIR illumination for spectroscopy, moisture detection, and material analysis where 808nm emitters are used as a light source (system dependent).

Technical Specifications

Note: Parameters characterized under test conditions in each datasheet (pulse width/duty cycle/heatsink temp differ by model). D-V0808M-2000-0042 characterized under CW. Values: Min/Typ/Max.

📊 Electro-Optical Parameters

💡 Swipe left/right on mobile to view complete table

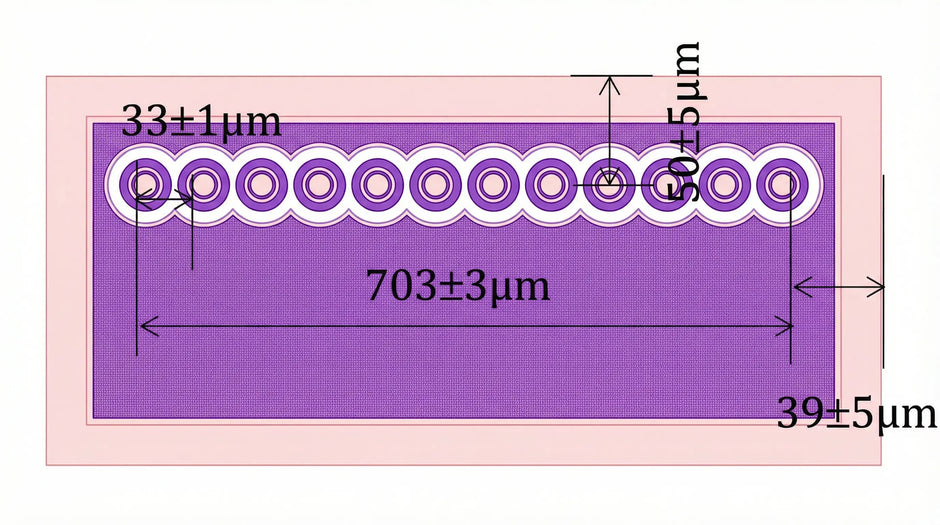

Common Specs: Emitter Aperture 5±0.5µm • Emitter Pitch 13±1µm • Die Thickness 100±15µm • dλ/dT ~0.059–0.073 nm/°C (critical for pumping) • Operating Temp -25 to +85°C • Storage -40 to +105°C • RoHS/REACH/HF compliant

Thermal Design: For 1.5W–3W models, efficient heat-sinking (TEC where needed) recommended for temperature margins, wavelength stability, and lifetime.

🌟 Product Advantages

• 808nm platform for PBM & pumping
  Commonly used wavelength for PBM system development and solid-state laser pumping.
• Wide power range coverage
  11 power options from 5mW to 3W cover applications from compact sensing to high-power systems.
• High power conversion efficiency
  Up to ~46% (typ) in low-power models supports efficient driver and thermal budgeting.
• Symmetric circular beam
  More symmetric beam profile (system-dependent) may simplify optical design compared to edge-emitters.

Product Comparison

🔬 808nm VCSEL vs. LED/EEL

Note: Indicative typical values only. Performance varies by supplier, package, optics, and test conditions. For reference only and not a specification commitment.

Frequently Asked Questions

❓ FAQ

📋 Detailed Application Scenarios

Primary Applications

• PBM System Integration (Professional Equipment/Platform)
  Integration into professional PBM platforms where irradiance delivery, thermal management, and safety controls are validated at device level. System performance depends on device design, dosage/irradiance, safety controls, and regulatory pathway (where applicable).
• Solid-State Laser Pumping (Optical Pumping near ~808nm)
  Optical pumping for Nd:YAG, Nd:YVO₄, and other solid-state laser media commonly pumped near ~808nm. Suitable for pumping module development and system integration where coupling efficiency, thermal lensing, and wavelength drift are managed through system optics and temperature control.
• Industrial Thermal Processing / Selective Heating
  Plastic welding, soldering, surface treatment, and selective heating processes where controlled optical power density and thermal design are required. VCSEL arrays suitable for compact thermal source modules where final temperature rise and heating rate depend on optical focusing, distance, material absorption, and heat dissipation design.
• NIR Spectroscopy / Sensing Illumination
  808nm narrow-spectrum near-infrared illumination source for material identification, moisture/composition detection, and reflective/transmissive measurement systems. System design requires matching detectors, optical filters, and management of temperature drift and power stability.

Secondary Applications

• Modular Light Engine Platform
  Standardized 808nm light source engine suitable for multi-model platform sharing. Different models achieve different spot sizes and output characteristics by changing optical components while using the same core light source module.
• R&D / Prototyping
  Validation of optical coupling, driver design, thermal management, temperature drift budgeting, and beam shaping (diffusers/homogenizers/light guides/integrating rods). Suitable for rapid engineering prototyping and platform iteration.
• Scalable Arrays / Power Extension Platform
  Array tiling to achieve higher total power or larger illumination area. Suitable for power-scalable system architectures with higher requirements for heat dissipation, uniformity, and driver consistency.
• Custom Wavelength/Binning/Divergence/Layout
  Customization for specific coupling structures (fiber coupling, light guides, pump cavities) or specific system windows (temperature/size/packaging). Custom parameter and array layout design available on project basis.

What are 808nm Laser Chips?

808nm laser chips, particularly VCSEL (Vertical-Cavity Surface-Emitting Laser) types, are widely used in various applications. These laser chips emit light at a wavelength of 808 nanometers, making them ideal for medical diagnostics and industrial sensing. They provide high efficiency and excellent thermal performance, which is crucial for applications such as laser therapy and optical sensors. However, what sets these chips apart is their compact design, which allows for easy integration into various systems.

Applications in Medical Diagnostics

In the medical field, 808nm laser chips play a significant role in diagnostic equipment. They are particularly used in procedures such as photothermal therapy and laser imaging. Because of their precise wavelength, these chips help target specific tissues without damaging surrounding areas. Furthermore, the reliability of 808nm laser chips ensures accurate results, which is essential for patient safety and treatment efficiency. Therefore, their application in healthcare continues to expand, maximizing benefits for both patients and practitioners.

Industrial Sensing Capabilities

Beyond healthcare, 808nm laser chips are also pivotal in various industrial sensing applications. They are utilized in manufacturing processes for measuring distances and detecting objects. Their high sensitivity makes them suitable for environments where precision is crucial. Additionally, the laser chips offer robust performance in harsh conditions, enhancing operational reliability. As industries continue to innovate, the demand for efficient sensing solutions, like those provided by 808nm laser chips, is likely to grow significantly.
