Explore the Benefits of 670nm VCSEL Laser Chips

🧠 About This Product

670nm VCSEL (Vertical-Cavity Surface-Emitting Laser) chips deliver precise wavelength control, concentrated beam output, and exceptional consistency, making them ideal for sports recovery, muscle relaxation, PBM (photobiomodulation) therapy, and professional physical therapy applications. Available in 4mW to 12mW power options, these chips support integration from professional recovery equipment to clinical rehabilitation systems. We provide end-to-end customization from bare die to SMD/COB packaging, meeting your needs from R&D to mass production.

💡 Application Scenarios

• Sports Recovery & Muscle Relaxation
  Athletic recovery and rehabilitation equipment for muscle care and recovery management. Performance depends on system optics and power density. Learn more →
• Joint & Soft Tissue Care
  Recovery management and therapy device integration for professional use. Suitable for joint support and soft tissue applications.
• PBM Photobiomodulation Therapy
  Professional and clinical-grade equipment with focused beam control. Ideal for photobiomodulation therapy applications requiring consistent output.
• Recovery Equipment Integration
  Professional therapy systems requiring consistent output and reliability. Suitable for sports medicine and physical therapy clinics.
• Additional Applications
  PPG sensors (heart rate monitoring, SpO2 detection), biometric recognition systems, AR/VR eye tracking, wearable health devices, vital signs monitoring.

Technical Specifications

📊 Technical Parameters

🌟 Product Advantages

• Precise Wavelength
  Default ±10nm binning range, optional ±5nm or ±2nm precision customization. Improves photobiomodulation consistency and is suitable for professional therapy and sports medicine applications requiring high standards.
• High-Efficiency Output
  Wall-plug efficiency of 16%, significantly higher than traditional LEDs (10-15%), delivering same brightness with lower power consumption.
• Symmetrical Far-Field Pattern
  Symmetrical far-field (typically donut-shaped), which may simplify optical design depending on application. Ideal for precision therapy and professional recovery equipment.
• Low-Cost Packaging Compatibility
  Supports standardized SMD (2-pin) surface mount packaging. Compared to EEL plug-in TO-5.6 packaging, processing and assembly costs can be reduced by over 90%.
• Flexible Packaging Solutions
  Supports single-chip, SMD surface mount, COB modules, and multi-chip VCSEL array packaging. Suitable for large-area illumination and professional output requirements.
• Concentrated Beam
  22-23° divergence angle provides concentrated output for precision therapy applications. Significantly improves energy utilization efficiency.
• Low Threshold Drive
  2.7–7.5mA operating current, compatible with battery-powered and low-power systems. Ideal choice for portable professional devices.
• Professional-Grade Quality Control
  Complies with RoHS / REACH / HF environmental standards, suitable for sports medicine equipment, physical therapy devices, and professional recovery systems. Can support medical device certification processes with required quality/consistency/compliance documentation (subject to project requirements).
• Optimized Die Sizes

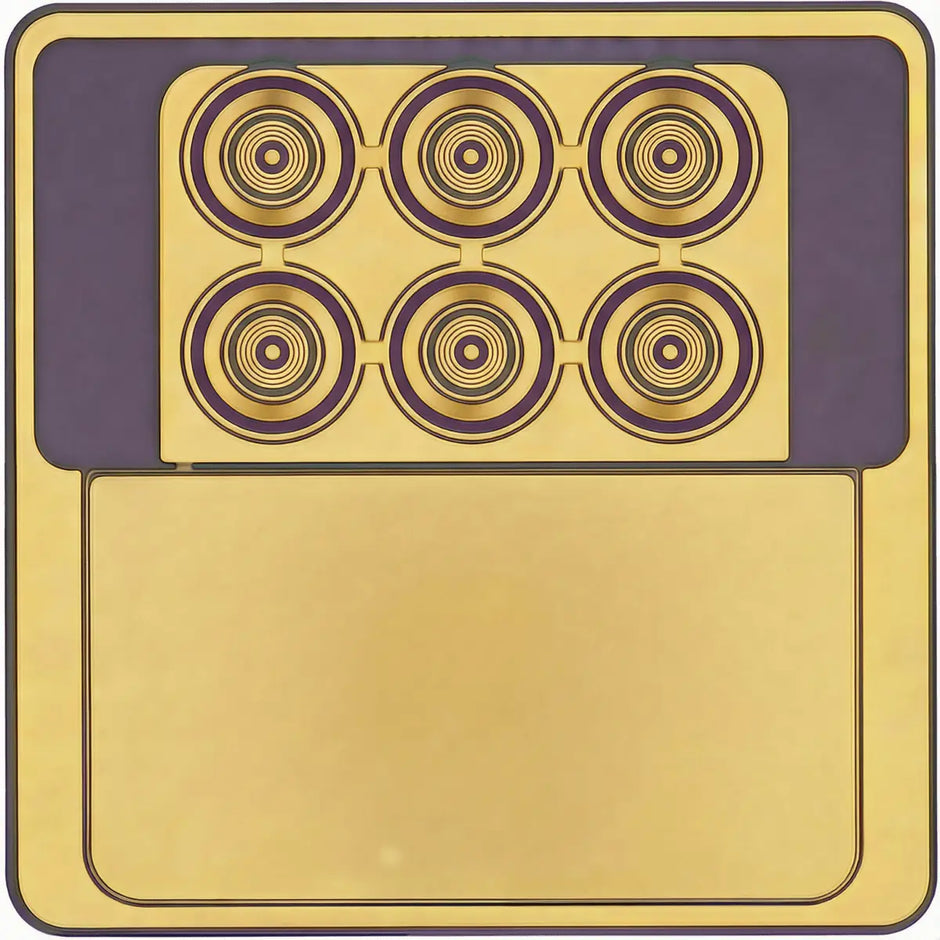

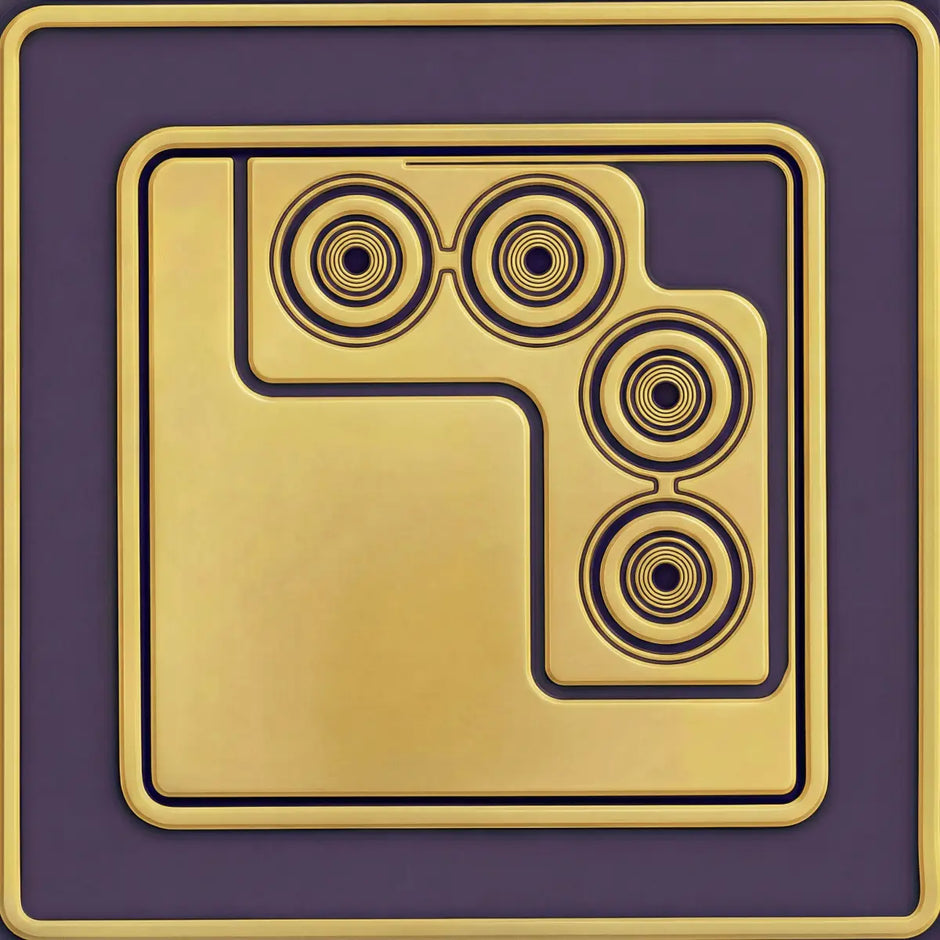

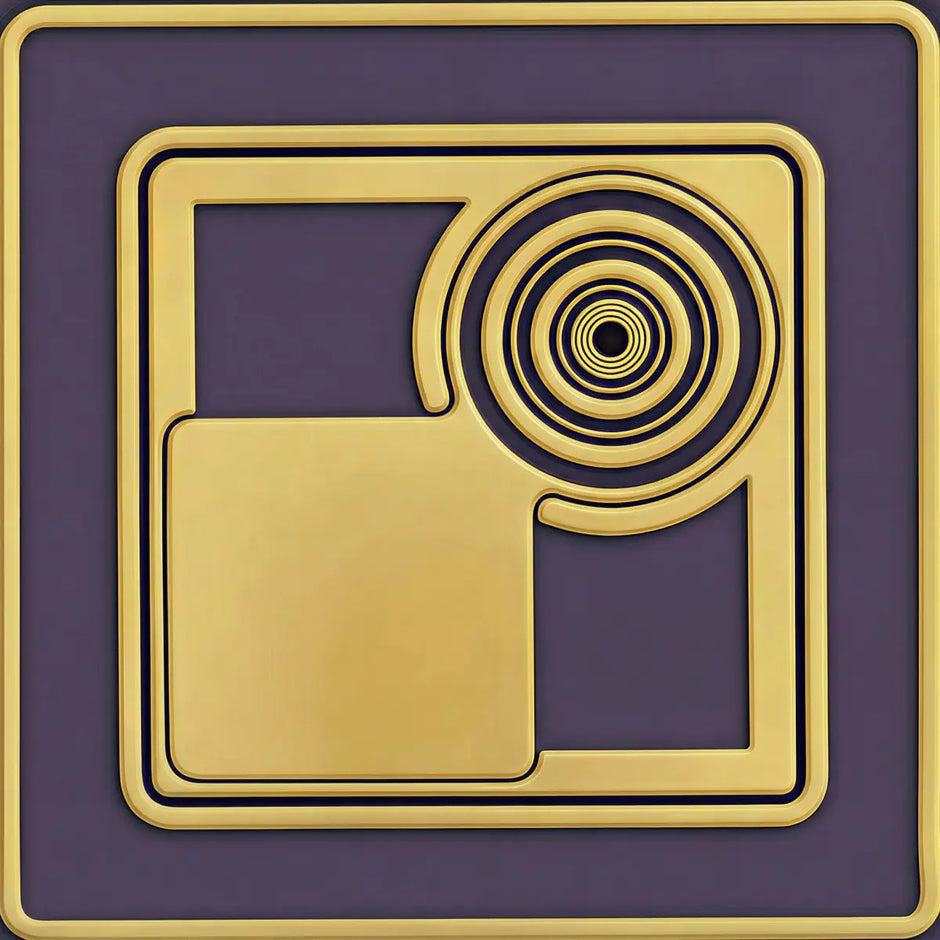

  Multiple die size options (200×200μm, 170×170μm, 163×185μm) optimized for different power outputs, facilitating integration into compact professional devices and therapy equipment.

📦 Power Selection Guide

💡 Need higher power or custom specifications?
We provide end-to-end customization from bare die to SMD/COB packaging. Visit our Custom & ODM Services page to discuss your specific requirements.

Product Comparison

🔬 Why Choose VCSEL Over LED or EEL?

Technology Comparison Table

💡 Tip: Swipe left/right on mobile devices to view complete table

Core Advantage Interpretation

• Superior Beam Quality
  22-23° divergence angle, concentrated output for precision therapy applications, significantly improved energy utilization efficiency.
• Deeper Effective Illumination
  Under the same power density and optical design, VCSEL's narrow divergence and more concentrated energy distribution typically deliver better illumination utilization efficiency and consistency (specific effects depend on system design).
• Higher Efficiency
  16% higher conversion efficiency than LEDs (10-15%), suitable for battery-powered professional devices.
• More Precise Wavelength
  ±10nm tolerance (optional ±5nm / ±2nm), far superior to LED's ±20-30nm, ensuring consistent therapy results.
• Optimized Die Sizes
  Multiple die size options (200×200μm, 170×170μm, 163×185μm) facilitate integration into compact professional devices and therapy equipment.
• Lower Packaging Cost
  SMD solution reduces assembly cost by over 90% compared to EEL plug-in packaging.

Frequently Asked Questions

❓ FAQ

What are 670nm VCSEL Laser Chips?

The 670nm VCSEL laser chips are advanced light sources that utilize vertical-cavity surface-emitting laser technology. These chips emit a specific wavelength of light, which is known to penetrate the skin effectively. This characteristic makes them ideal for applications in sports recovery and physical therapy. Athletes and therapists appreciate this technology because it enhances healing processes and reduces recovery times.

Applications in Sports Recovery

In the realm of sports recovery, the 670nm VCSEL laser chips offer targeted relief for muscle strains, joint pain, and inflammation. They deliver therapeutic light directly to affected areas, promoting increased blood flow and reducing recovery durations. Because of their efficacy, these chips are becoming a go-to choice for athletic trainers and rehabilitation specialists in facilitating faster and more effective recovery.

Benefits for Physical Therapy

Physical therapists increasingly trust the 670nm VCSEL laser chips for their low-risk, high-reward potential. These chips provide consistent and effective treatment options for various conditions, including chronic pain and soft tissue injuries. The safe and non-invasive nature of the light therapy appeals to both patients and professionals, making it a valuable addition to any therapy regimen. Since many patients prefer less invasive treatments, laser chips are an essential tool in modern physical therapy.
