From IPL to Precision Laser
According to 2024 industry data, the global beauty device market has reached $425.9 billion. Key markets like North America (38%) and Europe (26%) are undergoing a massive migration from traditional IPL to precision VCSEL technology. The limitations of IPL lie in its broad spectral dispersion and low energy utilization efficiency. In contrast, VCSEL has become the preferred choice for high-efficiency hair removal due to its narrow spectrum (with a wavelength temperature stability of only 0.07nm/°C) and high collimation. 1ONEVCSEL provides 808nm, 1064nm, and mixed-wavelength solutions, aiming to assist customers in achieving a generational upgrade of their product lines during this critical technological window through the stable output of our underlying chips.

Wavelength Selection Strategies Based on Melanin Absorption Variability
Leveraging the Fitzpatrick Skin Phototype logic, we provide precise wavelength adaptation strategies for diverse global markets:

• Type I-III (Light Skin Tones): Primary focus on the 808nm Golden Wavelength. This band features an exceptionally high absorption peak for melanin, enabling it to efficiently inhibit hair follicle germinative functions and disrupt the follicle growth environment through targeted photothermal action within a short pulse duration.
• Type IV-VI (Darker Skin Tones): Primary focus on the 1064nm Safety Wavelength. Due to its relatively lower absorption by epidermal melanin, the energy achieves deeper dermal penetration. This effectively mitigates the risk of thermal damage and post-inflammatory hyperpigmentation (PIH) in darker skin tones during the process.
• Customized Mixed Wavelengths: By integrating 808nm and 1064nm chips onto a single COB (Chip-on-Board), we achieve dual-wavelength complementarity, enabling a single device to serve the entire spectrum of global skin types.

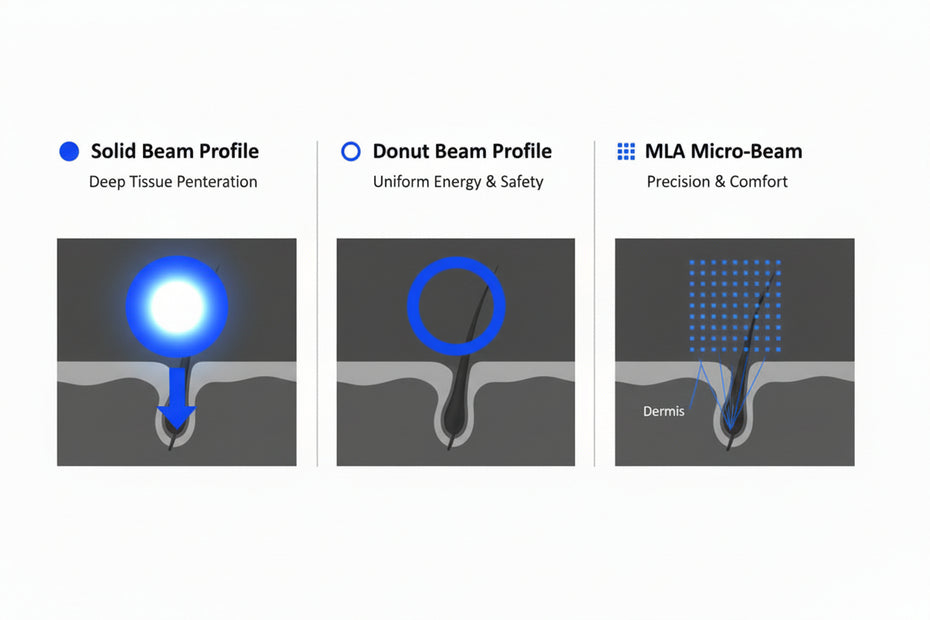

Meeting Diverse Product Positioning: Solid, Donut, and MLA Architectures
1ONEVCSEL offers three differentiated optical path solutions. We do not mandate high-cost components; instead, customers can choose the optimal configuration based on their specific product positioning:

• Solid Beam Profile (High Core Intensity): Concentrated core energy with exceptional tissue penetration depth, ideal for deep-rooted hair follicle management in professional-grade systems.
• Donut Profile (Uniform Ring Distribution): With the chip array arranged in a ring, this path naturally mitigates "Hot Spot" effects. It achieves high field uniformity without complex beam-shaping optics, making it the preferred choice for balancing safety and cost-efficiency.
• Micro-Lens Array (MLA Micro-Beam): An advanced premium selection. By integrating an MLA, the laser is segmented into numerous micron-scale parallel beams with diameters of approximately 50μm-100μm. Since the micro-beam diameter is smaller than human pores, the energy achieves precision coupling into the follicles. Meanwhile, the surrounding skin tissue acts as a "Natural Heat Sink," significantly enhancing user comfort.

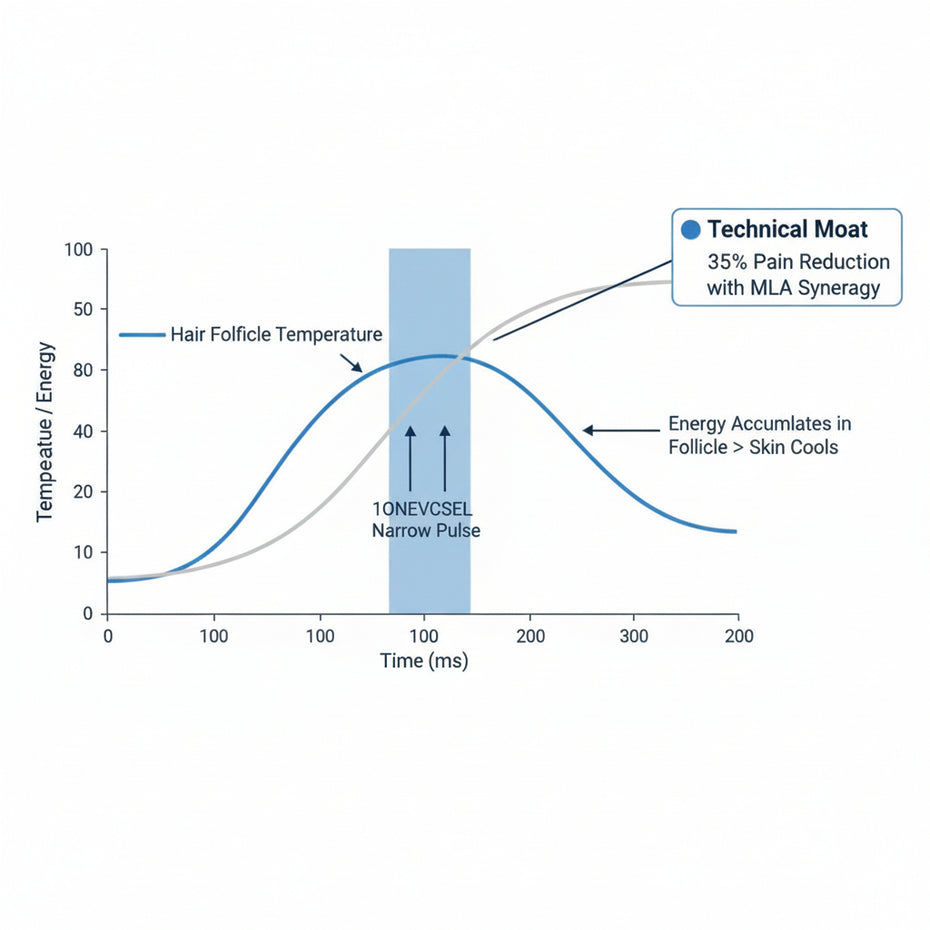

Technical Synergy Between 10ms–30ms Pulse Width and MLA Technology
To optimize hair removal efficiency while minimizing discomfort, we recommend the following parameters based on our research into Thermal Relaxation Time (TRT):

• Pulse Logic: We recommend a narrow pulse duration of 10ms – 30ms. Within this range, energy accumulation in the hair follicle occurs faster than the rate of heat dissipation, maximizing the photothermal effect.
• Pain Optimization: When utilizing Micro-Lens Array (MLA) technology, micron-scale light pillars are coupled precisely into the pores, significantly reducing ineffective thermal stimulation of epidermal nerve endings. Field tests demonstrate that, while maintaining the same energy density, this combination can reduce perceived pain feedback by approximately 35%. This physical pain-reduction logic provides customers with a distinctive "Technical Moat" beyond traditional contact cooling methods.

100,000-Hour Lifespan, Thermal Requirements, and Power Supply Logic

• Operating Lifespan: 1ONEVCSEL chips have a field-proven stable lifespan exceeding 50,000 hours. Under standard thermal operating conditions, the engineering design life is expected to reach 100,000 hours.

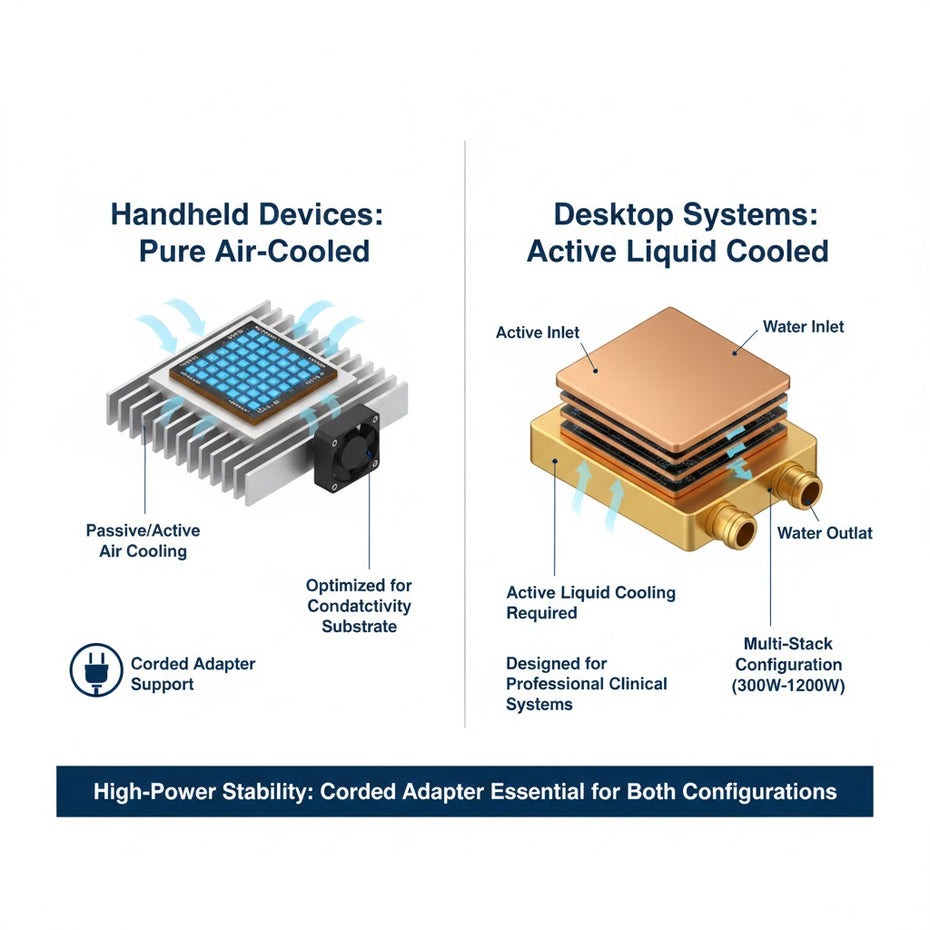

• Thermal Boundary: For high-power COB stacking solutions (ranging from 300W to 1200W), it is mandatory to match the module with a robust active cooling system (such as high-efficiency water cooling). Failure to do so will negatively impact chip longevity and the consistency of optical power output.
• Handheld Power Supply: Due to the extreme instantaneous current requirements of VCSEL during pulse bursts, we recommend a corded adapter power solution for handheld devices rather than a battery-powered design. This ensures the stability of high-energy output and aligns with the stringent entry standards of the medical personal care market.

Optimizing Filing Processes and Compliance Paths via Accession Number Referencing
In the global aesthetic light-source market, compliance is the cornerstone of market entry. 1ONEVCSEL’s laser components strictly adhere to the 21 CFR 1040.10 radiation safety standards, providing a foundational compliance guarantee for our OEM/ODM partners.

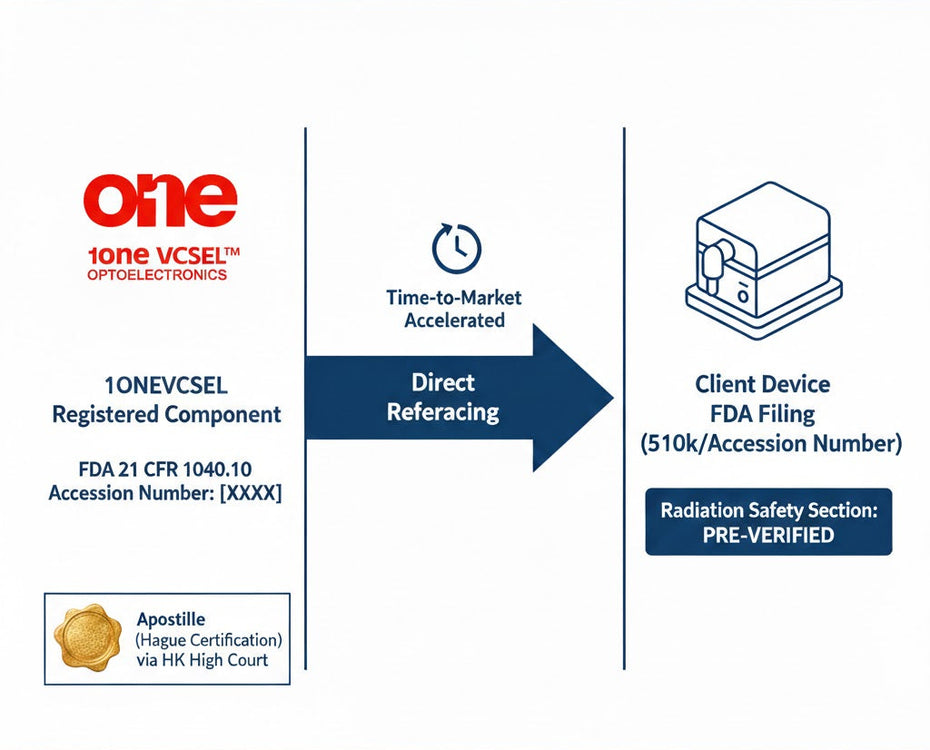

• Accession Number Referencing Mechanism: When clients file for FDA clearance (510k or Accession Number) for a complete system, they can directly reference our component's official registration number. This "Regulatory Equivalency Referencing" logic significantly streamlines the preparation of radiation safety documentation, assisting clients in shortening their certification cycles.
• Professional Endorsement & Legal Validity: We are actively advancing FDA Class I registration and provide legal documents authenticated by the High Court of Hong Kong with an Apostille (Hague Certification).

Assisting Clients with Parametric Calculations from Chip to Module
1ONEVCSEL provides more than just light sources; we offer deep engineering involvement throughout your design process:

• Optical Path Simulation: We assist clients in conducting optical simulations for "Solid, Donut, and MLA" configurations to ensure field uniformity meets rigorous industry standards.
• Pulse Parameter Optimization: Based on our chips' PCE (Power Conversion Efficiency) of 43%, we help optimize driver circuit designs for maximum performance and stability.
• High-Power COB Customization: We offer flexible chip-array layouts and specialized water-cooling interface designs tailored to the specific mechanical requirements of your device.
