PERFORMANCE ADVADNTAGES
The Difference in Optical Guiding Efficiency Between VCSELs and Traditional LEDs
In facial PBM (Photobiomodulation) applications, "directional energy guidance" and "spectral purity" are core indicators that determine the efficiency of light modulation. VCSELs demonstrate significant technological advantages compared to traditional LEDs:
• Up to 6 times higher energy directional guiding efficiency: Traditional LEDs have a diffuse emission angle, limiting energy utilization. 1ONE VCSEL's collimated laser angle is precisely controlled between 18° and 25°. This means that at the same driving current, VCSELs can achieve up to 6 times higher energy directional guiding efficiency. This high-energy collimated beam effectively overcomes the physical barriers of the epidermis, ensuring an irradiance of 143 mW/cm², thus more efficiently targeting the desired tissue layer.
• Optical value of narrow-spectrum coherent light: The spectral half-width of LEDs is typically 20-30 nm, with a relatively scattered energy distribution; while VCSELs have extremely high monochromaticity, with a spectral half-width of <1 nm. This high-purity coherent light can more precisely match intracellular receptors, generating efficient photobiological resonance and improving the efficiency of adenosine triphosphate (ATP) synthesis support, thereby optimizing the skin environment from the ground up.
• Excellent thermal stability: The wavelength shift coefficient of VCSELs with temperature is extremely low, only about 1/4 of that of LEDs. This means that during a single programmed cycle lasting up to 6 minutes, the light source can consistently maintain a specific wavelength window, effectively avoiding performance degradation.
BENCHMARKING ANALYSIS
The Evolutionary Logic of “The Pioneer” and “1ONEVCSEL (Next-Gen)
By deconstructing the industry pioneer, The Pioneer (Leading Competitor), 1ONEVCSEL has established the technical benchmarks for its next-generation intelligent platform:
• Optimized Full-Face Light Field Coverage: The Pioneer was the first to introduce FPT (Focused Ultra-Narrow Light) technology, utilizing approximately 140 VCSELs to achieve a shift from "surface maintenance" to "deep intervention." Our 1ONEVCSEL (Next-Gen) solution is customized for high density based on specific customer needs, with significantly more than 140 light-emitting points, achieving more uniform and comprehensive full-face light field coverage.
• High-Efficiency Photoelectric Conversion: Relying on an optimized semiconductor resonant cavity design, the Next-Gen solution maintains extremely low drive current levels (e.g., 10mA typical current) while outputting high-energy light beams. This physically reduces the generation of excess waste heat, making the device truly comfortable for prolonged wear.
• System-Level Improvement in Battery Life: Thanks to better semiconductor conversion efficiency, devices integrated with our solution can support up to 7-10 complete 6-minute programmed treatments per charge. This is a significant improvement compared to the industry benchmark, which only supports approximately 3-4 uses per full charge.
PACKAGING REVOLUTION
The Technological Dominance of Four-in-One Architecture and Six-Wavelength Integration

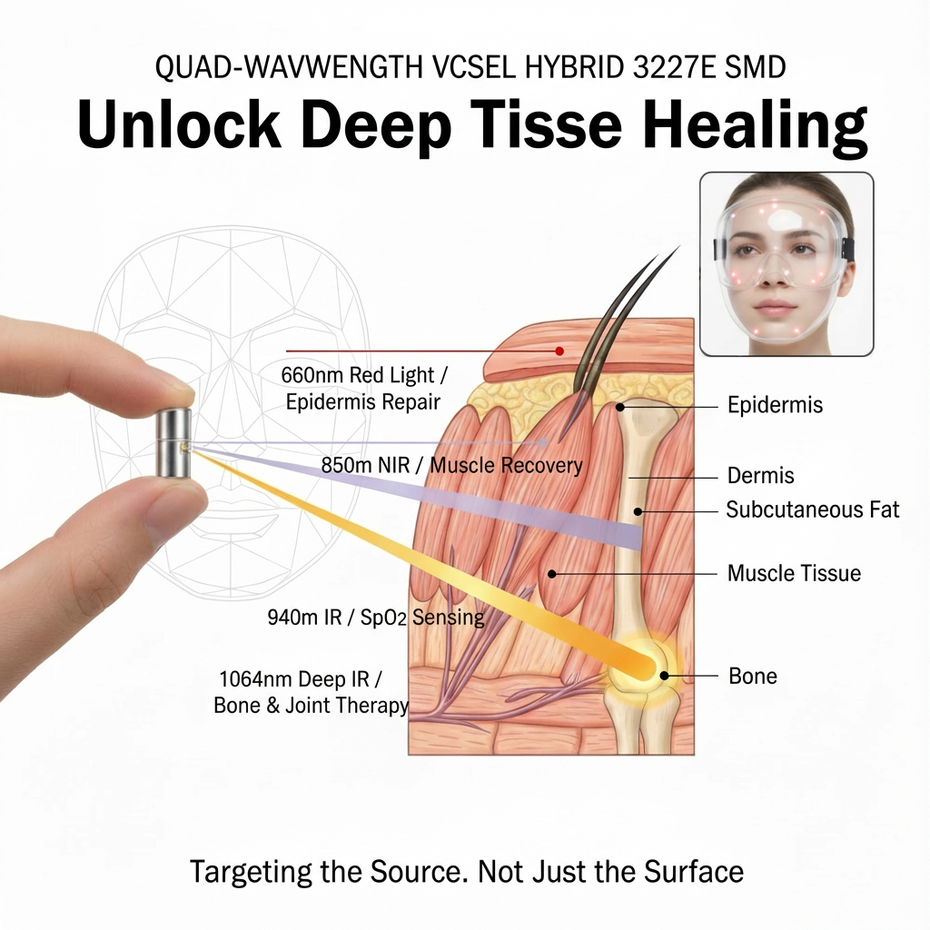

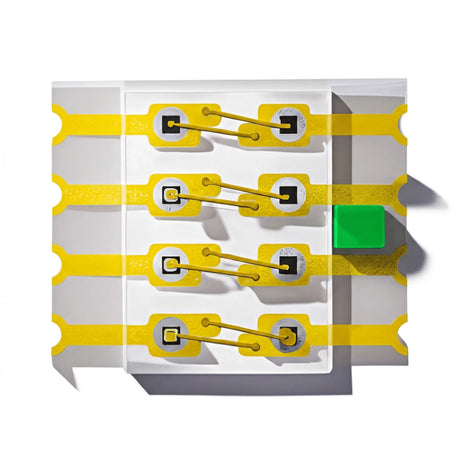

The diversity of facial skin problems (such as sebum imbalance, decreased elasticity, and pigmentation) demands that the light source possess "multi-spectral synergy" capabilities. 1ONEVCSEL's **four-in-one (Quad-Wavelength)** composite laser chip represents the current highly integrated packaging standard:
1. 660nm Red Laser: Typical output power of 5mW, precisely targeting the dermis.
2. 850nm/940nm Near-Infrared Light: Possesses extremely strong tissue penetration capabilities, focusing on improving facial microcirculation.
3. 1064nm Deep Laser: Output power can reach 15-20mW, capable of reaching depths that traditional LEDs cannot cover, used for optimizing the deep tissue environment.

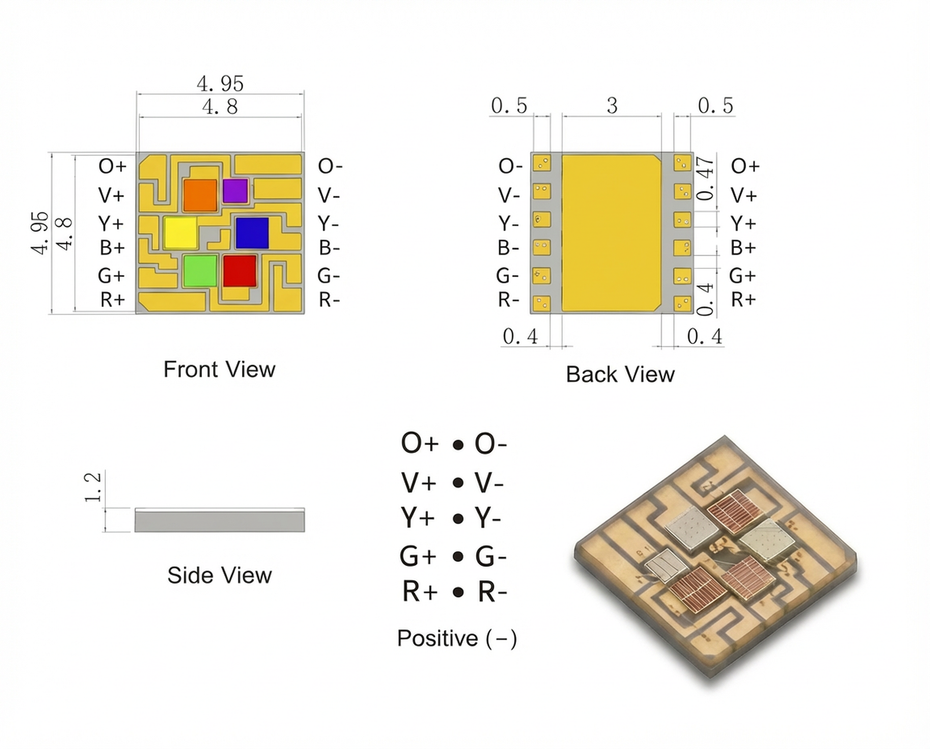

Based on the existing four-in-one highly integrated architecture, our packaging platform boasts industry-leading scalability, supporting up to six-wavelength integration within a single physical window.
UPDATED WITH 6 WAVELENGTHS
Precision Depth Management via 6-Wavelength Synergy
The efficacy of Photobiomodulation (PBM) is dictated by penetration depth and wavelength specificity. 1ONEVCSEL’s Next-Gen solution utilizes a strategic 6-wavelength matrix to provide multi-layered intervention:
1. Epidermal Environment (460nm Blue & 520nm Green):
◦ 460nm: Specifically targets the environment where acne-causing bacteria thrive for effective optical intervention.
◦ 520nm: Focuses on surface brightening and stabilizing the skin's tone.
2. Dermal Structural Support (660nm Red):
◦ The sharp, collimated 660nm laser beam directly reaches fibroblast clusters in the dermis to support natural collagen synthesis and enhance skin metabolism.
3. Deep-Tissue Vitality (850nm & 940nm NIR):
◦ Near-infrared light at 850nm enhances cell activity and elasticity, while 940nm activates microcirculation and supports melanin management.
4. Subcutaneous Structural Repair (1064nm Deep-IR):
◦ With high power output (15-20mW), the 1064nm beam penetrates significantly deeper (over 4.0mm) than traditional LEDs, reaching the subcutaneous layers to promote deep-tissue regeneration and slow down the aging process.
MODEL CLASSIFICATION STRATEGY
Unified SKU Management Logic under a Single PCBA
In the rapidly evolving beauty technology market, maintaining supply chain flexibility is the cornerstone of brand success. 1ONEVCSEL provides a **footprint-compatible** underlying hardware solution:
• Basic model: Integrates 660nm, 460nm, and 1064nm devices, focusing on improving daily environmental conditions.
• Flagship model: Seamlessly upgrades to a four-in-one composite device integrating 660nm, 850nm, 940nm, and 1064nm at the same solder pad locations. This "one board for multiple uses" engineering standard shortens the brand's R&D cycle by nearly 40%, significantly reducing the risk of inventory obsolescence.
SYSTEM INTEGRATION AND TURNKEY SERVICES
A "Zero R&D Barrier" Ecosystem for Large Annual Contract Customers
1ONEVCSEL is not only a component supplier but also a global leader in integrated solutions for the Low-Level Laser Therapy (LLLT) industry. We have established a comprehensive ecosystem for hair growth caps, facial masks, neck masks, chest masks, laser headbands, and laser combs.For large annual contract customers, we offer a unique "zero-cost system design service":
1. Complete Solution Delivery: We provide complete PCBA layout design, precision constant current drive logic, and optical path system optimization free of charge. Partners only need to bear the cost of third-party materials.
2. High-Performance Hardware Standards: The system matches a professional boost topology architecture and an efficient **"6 lasers/string"** distribution logic; using high-precision constant current ICs, the current deviation is controlled within <±10%, achieving more uniform and comprehensive full-face light field coverage.
3. Reliability Closed Loop: Integrating the GD32F103 MCU, it executes a 3-second long-press power on/off and a precise 6-minute automatic timing logic. The thickness of the thermal conductive adhesive on the metal-based PCB is strictly limited to <100um, combined with multi-point monitoring, forming a barrier of medical-grade reliability.
GLOBAL REGULATORY ACCESS & SAFETY
Data Support Based on Substantial Equivalence (SE)
In the global market access of beauty devices, the authority of technological endorsement is central to brand premium. 1ONEVCSEL boasts a comprehensive quality certification framework:
• Enterprise-level Endorsement: We have obtained ISO 9001 quality management system certification and IATF 16949:2016 certification for high-reliability supply chains.
• FDA Registration Status: Notably, 1ONEVCSEL's core laser components are expected to complete FDA Class I registration in the first half of 2026. This progress will demonstrate the safety of our light source products in home phototherapy applications.
• Substantial Equivalence (SE) Support: We possess a complete set of substantial equivalence comparison data and registered Accession Numbers for our multi-spectral VCSEL performance. Through the detailed technical documentation we provide, partners can effectively support the compliance demonstration of their products when applying for FDA 510(k) clearance, leveraging our existing collimated laser clinical comparison data and shortening the approval cycle. This "from chip to certification" full-process support is a core competitive advantage for brands seeking rapid global market entry.
Core VCSELs for Face Mask & PBM
It ensures that engineers can precisely select the right components for diverse form factors, including compact laser combs, flexible hair bands, and high-density hair regrowth caps.Thanks to our "Footprint Compatible" design architecture, you can directly compare the 5.5mW output efficiency across models at a typical 10mA drive current, enabling a single PCBA design to cover your entire SKU lineup—from standard 650nm replacements to 1064nm deep-tissue intervention solutions.
⚠️ Legal Notice
The products displayed on this website are semiconductor laser components and light source modules designed for integration into end devices. These components are not finished medical devices and require appropriate certification and regulatory approval by device manufacturers or brand owners. Compliance with IEC 60825-1, FDA regulations, and local photobiological safety standards for end products is the responsibility of the manufacturer or brand owner. 1ONELASER continuously pursues FDA Class I registration for our components to assist manufacturers and brand owners in accelerating their compliance certification process.
