940nm Laser Diode for Enhanced Face ID & AR/VR Eye Tracking

🧠 About This Product

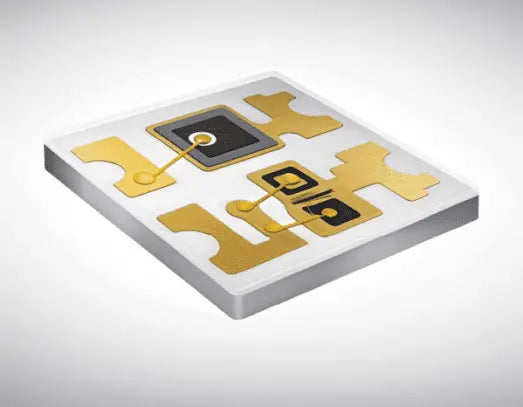

The 940nm VCSEL Laser Diode SMD with Integrated PD is a high-precision, ultra-compact infrared laser source. Its defining feature is the Integrated Monitor Photo-Diode (PD) within a specialized 1616 ceramic package.

This integration allows the system to monitor actual optical output in real-time, enabling active power stabilization and fail-safe operation. This is critical for eye-safe applications like proximity sensing and 3D imaging in consumer and industrial devices.

Key differentiators:

• Integrated Monitor PD: Provides real-time feedback of optical power for superior stability
• Ultra-compact 1616 form factor: Miniature footprint (1.6 x 1.6 x 0.7 mm) optimized for space-critical mobile designs
• Industry-leading low threshold: Typical threshold current of only 0.8mA, ensuring efficient start-up even in low-power modes
• Superior SNR: The 940nm wavelength minimizes solar noise interference, outperforming 850nm in outdoor or bright ambient environments
• Industrial grade quality: Fully compliant with RoHS, HF, and IATF 16949 reliability standards
• Closed-loop control ready: PD enables constant optical power across lifespan, regardless of temperature shifts

Project-dependent screening/traceability & compliance documentation available upon request.

💡 Application Scenarios

System performance is optimized through active PD feedback and proper driving circuitry.

• Smart Devices
  High-precision TWS earbud proximity sensing and smartphone facial recognition.
• Safety & Eye-Tracking
  AR/VR spatial mapping and gaze tracking where closed-loop power control is mandatory for safety.
• Industrial IoT
  Precision distance measurement and presence detection in compact industrial sensors.
• Automotive Interior
  Driver monitoring systems (DMS) and touchless gesture control.

Technical Specifications

Note: Parameters are typical values characterized at 25°C ambient temperature.

📊 Electro-Optical Parameters

💡 Swipe left/right on mobile to view complete table

Package Size: 1.6 × 1.6 × 0.7 mm (1616 ceramic package)

Assembly: Optimized for Pb-free reflow soldering (Single pass only). ESD-protected handling required.

🌟 Product Advantages

• Closed-loop control ready
  The integrated PD enables your driver to maintain constant optical power across its lifespan, regardless of temperature shifts. PD Light Current of 8μA (Typ.) provides precise feedback for active power stabilization.
• Industry-leading low threshold (0.8mA)
  Typical threshold current of only 0.8mA, even lower than 850nm models. Ensures efficient start-up and maximizes battery longevity in TWS earbuds and wearables.
• Ultra-miniature design
  Ceramic substrate package (1.6mm x 1.6mm) allows for high-density integration. Perfect for space-constrained mobile and wearable designs.
• Enhanced safety
  Active monitoring through PD feedback makes it easier to meet stringent laser safety certifications. PD Dark Current < 0.1μA ensures minimal noise interference.

Product Comparison

🔬 940nm VCSEL (with PD) vs. Standard 940nm VCSEL

Note: Indicative typical values only. Performance varies by supplier, package, optics, and test conditions. For reference only and not a specification commitment.

Frequently Asked Questions

❓ FAQ

📋 Detailed Application Scenarios

Primary Applications (Consumer Electronics)

• Proximity & Presence Sensing
  The 0.8mA ultra-low threshold current and tiny 1616 footprint make this the perfect choice for smartphones and TWS earbuds where internal space is at a premium.
• 3D Structured Light & ToF
  Ideal as a flood illuminator for 3D sensing. The PD ensures that the infrared "flash" remains at a safe and consistent intensity over the product's lifetime.

Secondary Applications (Industrial & VR)

• AR/VR Spatial Tracking
  Provides the fast-response illumination needed for tracking head and hand movements in real-time.
• Active Laser Safety Systems
  The integrated monitoring allows the device to self-diagnose failures, meeting higher safety standards in industrial automation.

High-Performance 940nm Laser Diodes

The 940nm laser diode is a cutting-edge component widely used in Face ID technology. This laser operates efficiently at a near-infrared wavelength, making it ideal for precise facial recognition and tracking. The laser's ability to provide clear images in various lighting conditions enhances security and user experience. Moreover, its compact size allows easy integration into devices.

Applications in Augmented and Virtual Reality

In addition to facial recognition, the 940nm laser diode plays a crucial role in AR/VR applications. It enables eye tracking, allowing for immersive experiences where user interactions feel natural and intuitive. By emitting a focused infrared light, it accurately detects eye movements and gestures, providing seamless interaction within virtual environments. This capability is essential for creating engaging AR/VR experiences.

Benefits of SMD Packaging
