Product Overview

🧠 About This Product

This Quad-Wavelength VCSEL Hybrid Laser Diode integrates 660nm Red VCSEL, 850nm NIR VCSEL, 940nm IR VCSEL, and 1064nm Deep-IR VCSEL within an ultra-compact 3227E SMD footprint (3.2x2.7x1.1mm). The four-wavelength laser-grade synergy delivers professional photobiomodulation (PBM) and precision sensing: 660nm activates superficial tissue repair; 850nm penetrates muscle layers for deep therapy; 940nm provides high signal-to-noise ratio biosensing; 1064nm "penetration king" reaches 8-10mm deep into joints and bone tissue for chronic pain relief. Featuring 30° narrow-beam collimation across all wavelengths, ultra-low power consumption (8-25mA), and extreme miniaturization, this component is specifically designed for medical-grade deep tissue rehabilitation, smart rings, laser hair regrowth systems, and professional clinical platforms.

💡 1064nm Deep Penetration Advantage: The 1064nm wavelength (15-20mW) is the "penetration king" in photobiomodulation. With minimal melanin absorption and maximum tissue transparency, it penetrates 8-10mm deep to reach joints, bones, and deep muscle tissue—targeting chronic pain and inflammation that conventional red/NIR light cannot reach.

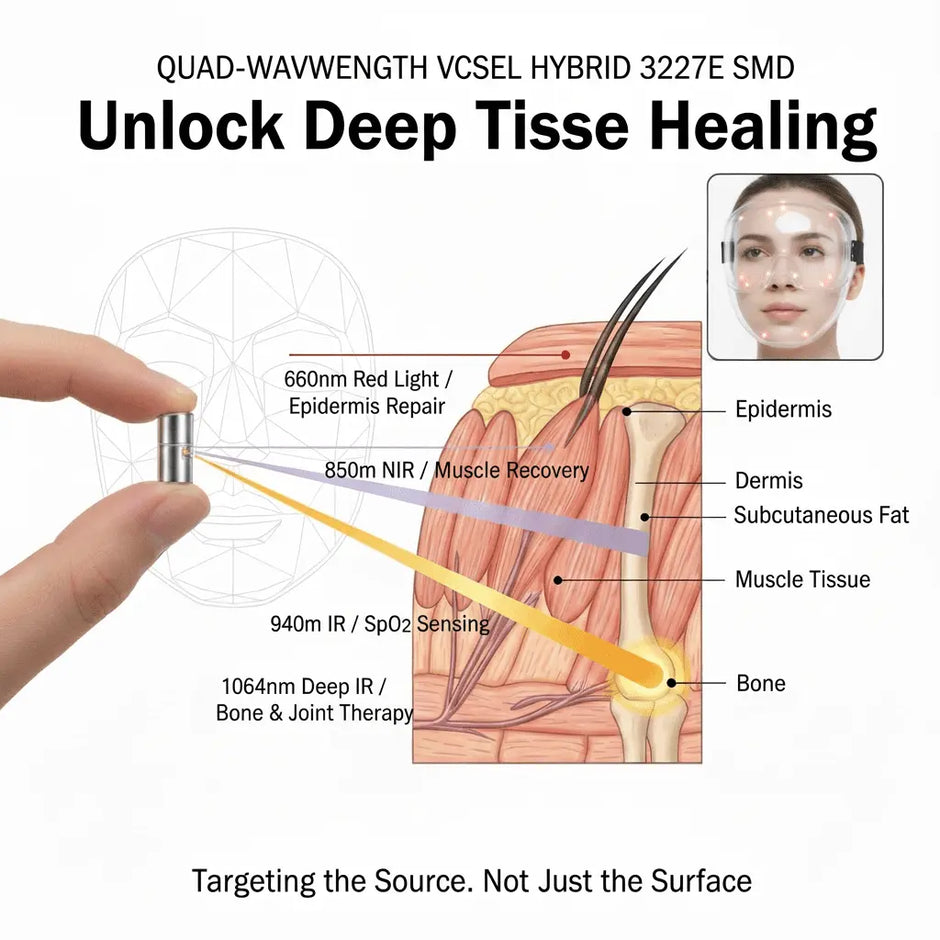

Figure 1: Comparative penetration depth of 660nm/850nm/940nm/1064nm VCSEL wavelengths. The 1064nm reaches 8-10mm deep to bone and joint tissue.

💡 Application Scenarios

• Full-Spectrum Phototherapy Devices
  Single component delivers complete treatment from epidermal repair (660nm) to deep joint/bone therapy (1064nm). Learn more →
• High-Precision Biosensing
  Utilizes VCSEL's narrow-angle characteristics (30°) for extremely high SNR in SpO2, heart rate, and blood glucose monitoring.
• Micro-Integrated Wearables
  3227E ultra-compact packaging (3.2x2.7mm) perfectly fits smart rings, smart watches, and handheld medical-aesthetic devices.
• Deep Penetration Therapy
  Integrated 1064nm VCSEL with penetration depth far exceeding conventional LEDs, directly targeting pain core areas.

Technical Specifications

📊 Technical Parameters

Test Conditions: T_A=25°C

💡 Design Note: 30° narrow-beam VCSEL lasers across all wavelengths for uniform therapeutic coverage. All wavelengths optimized for ultra-low power consumption (8-25mA) ideal for battery-powered wearables.

Product Comparison

🔬 VCSEL vs. Traditional LED

💡 Tip: Swipe left/right on mobile to view table

Pin-Out Guide

🔌 3227E Pin Configuration

💡 Pro Tip: Independent pin design allows programmable mode switching—Red Light Mode (660nm), Full-Spectrum Mode (all), or Deep Therapy Mode (850nm+1064nm).

FAQ

📋 Detailed Applications

Primary Applications

• Advanced Laser Rehabilitation Therapy
  Full-spectrum 660nm to 1064nm for non-invasive treatment of arthritis, sports injuries, deep inflammation. 1064nm provides deep penetration conventional devices cannot match.
• Medical-Grade Smart Rings
  Integrates four wavelengths in extremely small wearable space for 24/7 health monitoring. Perfect balance of ultra-compact size and low power.
• Laser Hair Growth & Scalp Care
  Golden wavelength combination of 660nm and 850nm to stimulate follicles. VCSEL's narrow-angle beam penetrates hair to reach scalp roots.

Secondary Applications

• Smart Glasses & AR/VR Sensors
  Infrared supplementary light for eye-tracking or facial recognition.
• Portable Blood Glucose/SpO2 Detection
  Instant physiological data analysis through smartphone plug-ins with medical-grade accuracy.
• Precision Industrial Ranging
  Multi-wavelength reflection differences for micro-distance measurement or material identification.

Disclaimer: This product is designed for integration into wellness and light-therapy devices. It is not a medical device and is not intended to diagnose, treat, cure, or prevent any disease. End-product manufacturers are responsible for ensuring regulatory compliance in their target markets.
