When choosing and applying lasers, one of the critical performance metrics to consider is the power density of the emitted light. In this article, we will compare two popular types of lasers: CW DFB Lasers (Continuous Wave Distributed Feedback Lasers) and VCSEL Laser (Vertical Cavity Surface Emitting Lasers), with a focus on their significant difference in light power density.

Power Density of CW DFB Lasers

CW DFB lasers use a edge-emitting structure, where the light emission power density is heavily influenced by factors like the cavity length (feedback length) and the material structure. In CW DFB lasers, we often see differences in power ratings—such as 70mW and 100mW lasers with a cavity length of 1mm, or a 200mW laser requiring a 2mm cavity length. While the cavity length is commonly discussed, one critical but often overlooked parameter is the light power density per unit area.

The emission area of a CW DFB laser depends on the width and height of the Multiple Quantum Wells (MQW) structure. For typical CW DFB lasers, the width is around 2.5 μm and the height is about 150 nm, resulting in an emission area of approximately 0.375 μm².

For a 70mW laser, the light power density is calculated as follows:

Thus, the light power density of a CW DFB laser is approximately 186 mW/μm², which is concentrated in the MQW region of the laser.

Power Density of VCSEL Lasers

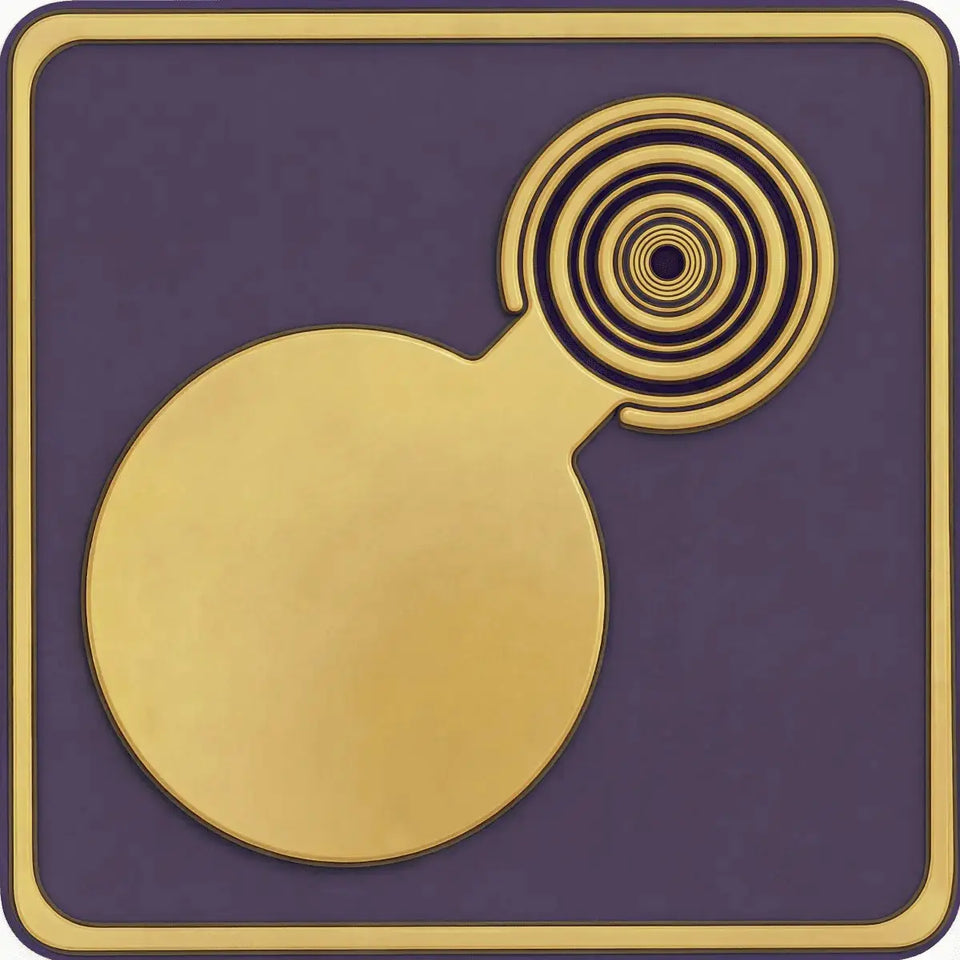

In contrast to edge-emitting CW DFB lasers, VCSEL lasers are surface-emitting lasers, where the emission occurs through a small circular aperture in the center. The diameter of this emission hole is typically about 6 μm, giving it an emission area of about 28 μm². When used in applications, a typical VCSEL outputs about 2mW.

The light power density of VCSELs is then calculated as:

This results in a light power density of about 0.07 mW/μm², which is much lower than that of CW DFB lasers. In fact, the power density of CW DFB lasers is roughly 2700 times greater than that of VCSELs.

Significance of the Power Density Difference

The difference in light power density between CW DFB and VCSEL lasers has a significant impact on their performance, reliability, and engineering considerations, especially in terms of integration conditions like die attachment and wire bonding.

1. Performance and Efficiency:
   CW DFB lasers, with their higher power density, can provide higher output power, making them suitable for applications that require long-distance transmission or high-power performance. On the other hand, VCSELs, with lower power density, are ideal for localized light emission and high-efficiency integrated systems, such as fiber optic transmission and low-power sensors.

2. Engineering Considerations (e.g., Die Attachment and Wire Bonding):
   Due to the higher power density of CW DFB lasers, they require more robust thermal management to prevent overheating and power degradation. This often necessitates specially designed heat sinks or cooling systems. In contrast, VCSEL lasers, with their lower power density, are less demanding in terms of heat dissipation, which can make them easier to integrate into compact systems.

3. Reliability and Lifespan:
   CW DFB lasers, with their higher power density, may face challenges related to thermal load and power degradation. However, VCSEL lasers, with their lower power density, generally face fewer thermal challenges, potentially leading to a longer lifespan and higher reliability over time.

Conclusion

When choosing between CW DFB and VCSEL lasers, the light power density is an important factor to consider. CW DFB lasers, with their higher power density, are better suited for applications requiring high output power, such as long-distance optical communication, precision measurements, and high-power industrial systems. On the other hand, VCSEL lasers, with their lower power density, are more suitable for low-power applications, integrated systems, and scenarios where heat dissipation is a concern, such as in medical devices, sensors, and the beauty & wellness industry.

Understanding the power density of these two types of lasers, and considering their corresponding engineering applications, will help ensure that we choose the right laser for our specific needs, ensuring optimal performance, reliability, and long-term operation.
