Introduction

In the historical trajectory of semiconductor optoelectronics, the Vertical-Cavity Surface-Emitting Laser (VCSEL) represents a definitive leap in diode technology. Unlike traditional Edge-Emitting Lasers (EEL), which rely on cleaved facets for feedback, the VCSEL constructs its resonant cavity in the vertical direction via advanced epitaxy. This architecture enables circular beam profiles, ultra-low threshold currents, and high-efficiency wafer-level testing (WLT). This paper provides a deep dive into the microscopic physical mechanisms and the macroscopic application logic of modern VCSEL systems.

1. Device Architecture: The Art of Physical Balance

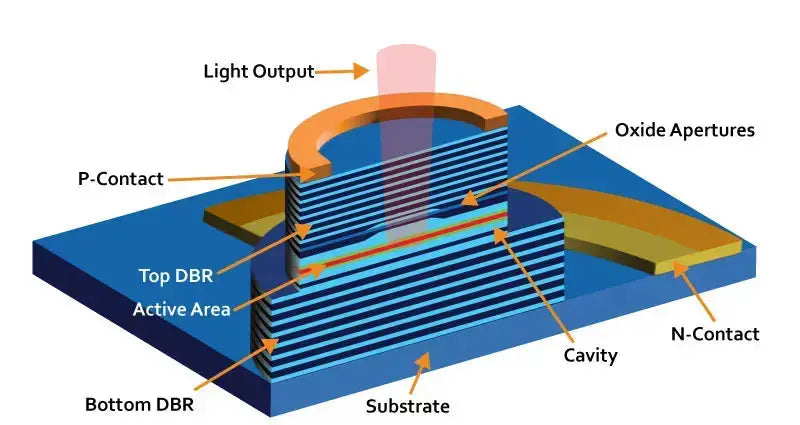

The design of a VCSEL is a meticulous balancing act between electrical conduction, optical resonance, and thermal dissipation. At its longitudinal core, a VCSEL functions as a Fabry-Pérot (F-P) interferometer.

1.1 Distributed Bragg Reflectors (DBR): Resolving the Triple Conflict

The DBR constitutes approximately 90% of the device volume. Designing a DBR requires solving three mutually exclusive physical challenges: optical reflection, electrical transport, and band-edge barriers.

A. The Optical Imperative: Why 99.9%?

In a VCSEL, the active region thickness $L_{a}$ is extremely short (typically a few quantum wells). Consequently, the single-pass gain $g L_{a}$ is minimal. To achieve the threshold condition, the mirror reflectivity $R$ must exceed 99.9%.

The DBR achieves this through multi-layer interference. By alternating layers of high refractive index ($n_{H}$) and low refractive index ($n_{L}$) with a thickness of $d = \lambda / (4n)$, the reflected waves interfere constructively.

B. Material Selection: GaAs vs. InP

The bandwidth of the DBR (the "stop-band") is determined by the index contrast $\Delta n = n_{H} - n_{L}$. In the $AlGaAs/GaAs$ system, $\Delta n$ is large ($\approx 0.5$), requiring only 20–30 pairs to reach 99.9% reflectivity with a broad 100nm bandwidth. In contrast, $InP$-based long-wavelength VCSELs suffer from low $\Delta n$, necessitating over 50 pairs and making them notoriously difficult to manufacture without wafer-bonding techniques.

C. Modulation Doping: The Space Magic

Optical requirements demand low doping to reduce Free Carrier Absorption (FCA), while electrical requirements demand high doping for low resistance. VCSELs solve this using Modulation Doping, leveraging the Standing Wave profile in the cavity. We apply high doping at the Nodes (where optical intensity is zero) to facilitate conduction and low doping at the Antinodes to minimize absorption loss.

D. Graded Interfaces: Smoothing the Band Spikes

Contact between materials like $AlAs$ and $GaAs$ creates sharp energy band spikes. For P-type DBRs, these spikes act as massive resistors. We utilize a Graded Interface (typically 20nm) where the Aluminum composition is linearly or parabolically changed from 0% to 100%. This transforms "cliffs" into "ramps," allowing carriers to pass via thermionic-field emission and reducing series resistance by orders of magnitude.

2. Quantum Well Engineering: Strain and Detuning

The heart of the VCSEL—the active region—relies on Strain Engineering and Gain-Cavity Detuning to push the limits of performance.

2.1 Compressive Strain Engineering

By growing $InGaAs$ on $GaAs$, we intentionally introduce compressive strain. This breaks the crystal symmetry and the degeneracy of the heavy-hole (HH) and light-hole (LH) bands at the $\Gamma$ point.

• Physical Effect: The effective mass of the topmost valence band $m_{h}^{*}$ decreases significantly.

• Engineering Outcome: Since the density of states $D(E) \propto (m^{*})^{3/2}$, a lower mass means the "energy bucket" is smaller. We achieve Population Inversion with far fewer carriers, leading to a much lower threshold current density $J_{th}$ and higher modulation bandwidth.

2.2 Gain-Cavity Detuning: The Thermal Race

Semiconductor gain peaks ($E_{g}$) redshift at $\sim 0.3nm/^\circ C$, while cavity modes (defined by $n$) redshift at only $\sim 0.06nm/^\circ C$. If aligned perfectly at room temperature ($25^\circ C$), the gain peak would "outrun" the cavity mode at high temperatures, causing power collapse.

• The Solution: We design a Negative Detuning (typically 10–15nm). In the "Cold" state, the gain peak and cavity mode are misaligned. As the junction temperature rises to $85^\circ C$ or higher, the fast-moving gain peak "catches up" to the cavity mode. This Mode Alignment at peak operating temperatures ensures maximum efficiency and reliability in harsh environments.

3. Threshold Gain Analysis

The mathematical foundation of VCSEL design is found in the threshold gain equation:

Where:

• $\Gamma$: Optical confinement factor.

• $\alpha_{i}$: Internal loss (FCA, scattering).

• $L_{c}$: Total cavity length.

• $R_{1}, R_{2}$: Mirror reflectivities.

Because $L_{a}$ is in the micron range, the term $\ln(1/\sqrt{R_{1}R_{2}})$ must be minimized. This explains why VCSELs are physically impossible without the high-reflectivity DBR structures mentioned earlier.

4. Application Deep Dive: From Datacom to LiDAR

4.1 Datacom: The PAM4 Revolution

Short-reach (SR) interconnects in AI data centers rely on 850nm VCSELs. As we hit the 30GHz bandwidth ceiling of NRZ modulation, the industry shifted to PAM4 (Pulse Amplitude Modulation 4-level). This requires VCSELs with exceptional linearity and low Relative Intensity Noise (RIN), as the eye-diagram height is reduced to 1/3, making the system highly sensitive to non-linear distortion.

4.2 3D Sensing: Solar Blind Accuracy

For FaceID and ToF (Time-of-Flight), 940nm is the preferred wavelength because it falls within the atmospheric water absorption band (Solar Blind), reducing ambient noise. dToF applications require Flip-Chip packaging to minimize parasitic inductance, allowing for sub-nanosecond pulses with rise times $< 500ps$.

4.3 Automotive LiDAR: The Multi-Junction Revolution

To detect low-reflectivity objects at 200m, we need massive pulse power. Traditional single-junction VCSELs are limited by a slope efficiency of $\sim 1W/A$.

Multi-junction technology stacks 3, 5, or 9 active regions connected by Tunnel Junctions. These junctions allow an electron to "tunnel" from the valence band to the conduction band after emitting a photon, essentially "recycling" the electron to emit another photon in the next layer.

• Efficiency: Slope efficiency jumps to $> 4W/A$.

• Thermal Benefit: Since $P_{heat} \propto I^{2}R$, reducing the current $I$ to achieve the same power exponentially reduces the system's thermal load.

5. Summary and Future Horizons

VCSEL technology has moved beyond the "consumer" phase and is entering a "strategic" phase in industrial and automotive sectors. While challenges such as Polarization Control (via non-symmetric apertures) and $InP$ long-wavelength manufacturing remain, the VCSEL's modularity and efficiency ensure its status as the primary engine for the next generation of photonic intelligence.
