680nm 50mW VCSEL Bare Die
680nm 50mW VCSEL Bare Die for die attach, gold-wire bonding, ceramic submount assembly, custom VCSEL packaging and high-output red VCSEL chip integration.
Specifications
- Product Type
- Multi-mode VCSEL Bare Die
- Wavelength
- 680 nm typ.
- Optical Output Power
- 50mW class, 55mW typ. @ IF = 140mA
- Emitter Configuration
- 21 Emitters
- Operating Mode
- QCW, 0.5ms Pulse Width, 1% Duty Cycle
- Die Size
- 300±10 μm × 300±10 μm
- Recommended Assembly
- Die Attach / Wire Bonding / Ceramic Submount / Custom Packaging
1. 680nm 50mW VCSEL Bare Die for Packaging and Module Integration
The 680nm 50mW VCSEL Bare Die is a 21-emitter, high-output, multi-mode visible-red VCSEL chip and red VCSEL laser chip developed for chip-level packaging, die attach, gold-wire bonding, ceramic-submount assembly and custom VCSEL packaging.
This high-output 21-emitter red VCSEL die provides 55mW typ. optical output under a 140mA, 25°C QCW test condition. Its larger 300±10μm × 300±10μm die footprint supports high-output visible-red optical-source packaging, large-array VCSEL die integration, multi-emitter bonding-path design and high-output red VCSEL module development.
This 680nm VCSEL chip is intended for:
- OSAT semiconductor assembly and test providers
- VCSEL and laser-diode packaging companies
- SMD, TO-can and ceramic package developers
- Die-attach and wire-bonding engineering teams
- Ceramic-submount and COB integrators
- Laser-module and optoelectronic-module manufacturers
- Lens, collimation and beam-shaping companies involved in laser-source integration
- Laser bare-die, component and optical-module distributors
- Technical sourcing and second-source development teams
The VCSEL die can be integrated into custom SMD packages, TO-can packages, ceramic packages, ceramic-submount assemblies and high-output optical modules. As an unpackaged semiconductor chip, it requires suitable mounting, bonding, thermal-path, package-design and optical-integration processes before use in a finished device or module.
2. Optical Configuration and Packaging Direction
The 680nm 50mW VCSEL chip uses a 21-emitter, multi-mode structure for high-output visible-red optical-source packaging and large-array VCSEL package development.
Parameter | Value |
|---|---|
Optical Output Power | 48mW min. / 55mW typ. @ IF = 140mA |
Center Wavelength | 680nm typ. |
Wavelength Range | 675nm min. / 680nm typ. |
Threshold Current | 32mA typ. |
Forward Voltage | 2.75V typ. @ IF = 140mA |
Slope Efficiency | 0.5W/A min. / 0.6W/A typ. |
Power Conversion Efficiency | 15% typ. @ IF = 140mA |
Beam Divergence | 23° typ. @ IF = 140mA |
Operating Condition | QCW, 0.5ms pulse width, 1% duty cycle |
Die Size | 300±10μm × 300±10μm |
Die Thickness | 130±10μm |
Number of Emitters | 21 |

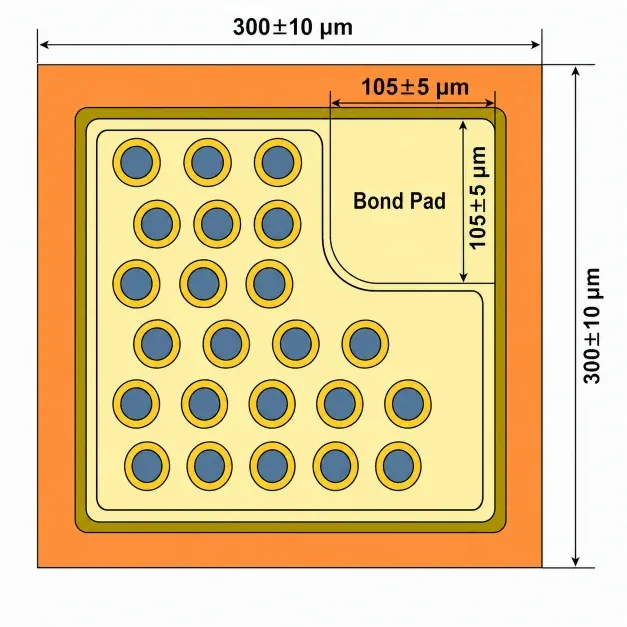

Bond Pad Size | 105±5μm |
Back Electrode Size | 300±10μm × 300±10μm |
The device can be supplied as VCSEL die for packaging in:
- Die-attach process development
- Gold-wire bonding verification
- Wire-bonded ceramic-submount assemblies
- Chip-on-submount assembly
- Custom SMD laser packages
- TO-can and ceramic packages
- High-output visible-red optical modules
- Lens and beam-shaping optical assemblies
Compared with the 680nm 5mW, 12mW and 18mW models, the 50mW device is positioned as the 21-emitter high-output option for customers requiring significantly higher optical output, larger emitter count and high-output red VCSEL chip integration. Compared with the 680nm 18mW six-emitter model, the 50mW model uses a larger 300±10μm × 300±10μm die footprint and a 21-emitter layout for high-output optical-source packaging.
3. Packaging, Optical Module and Application Development
OSAT and Custom Laser Packaging
The 680nm 50mW bare die supports wire-bonding VCSEL projects, ceramic-submount assembly and application-specific high-output laser-device development.
Packaging directions include:
- VCSEL die attach
- Gold-wire bonding process verification
- Custom VCSEL packaging
- Custom SMD laser packages
- TO-can laser packages
- Ceramic laser packages
- Ceramic-submount optical sources
- Chip-on-submount assembly
- COB and high-output optical modules
- 21-emitter visible-red VCSEL source packages
- High-output red VCSEL modules
- Large-array red VCSEL packages
The 21-emitter structure makes this model suitable for packaging teams that need a high-output 680nm red VCSEL die with a larger emitter count and larger die footprint. It can support high-output layout evaluation, bonding-path design, thermal-path design and optical-module integration where lower-emitter-count die options may not provide enough optical output.
Lens and Optical Module Integration
The device can support lens, collimation and beam-shaping companies developing high-output visible-red laser-source assemblies.
Possible integration directions include:
- Collimation-lens assemblies
- Beam-shaping optical components
- Diffuser-integrated modules
- Lens-integrated VCSEL sources
- High-output visible-red optical modules
- 21-emitter red VCSEL source modules
- High-output red-light optical modules
- Multi-emitter optical-source evaluation
- Large-array VCSEL source assemblies
For projects requiring a 680nm visible-red light source with high optical output and a larger emitter array, this device can be used as a bare-die red VCSEL chip option for packaging, collimation, diffusion, beam shaping and optical-module development.
Downstream Application Development
The datasheet identifies sensor light sources, consumer electronic products, machine vision and red lighting as application directions.
The device can also support:
- High-output visible-red laser modules
- Alignment and indication sources
- Optical sensor light sources
- Engineering and research light sources
- Machine-vision support illumination
- Beauty and personal-care prototypes
- Photobiomodulation-related optical development
- Hair-growth and scalp-light device development
These are downstream directions after the VCSEL bare die has been integrated into an appropriate package or optical module. The primary focus of this page remains bare-die supply, die attach, gold-wire bonding, custom VCSEL packaging and high-output module integration.
The product is also available to laser-component agents, module distributors and second-source development teams supporting customer packaging and integration projects.
4. Evaluation Kit and Documentation Support
The 680nm 50mW VCSEL Bare Die is available as an Evaluation Kit for packaging trials, die-attach development, gold-wire bonding verification and initial optical integration.
- 10 pcs / KIT
- Product datasheet and die-dimension documentation
- International shipping quoted according to destination
- Center wavelength, wavelength tolerance, optical output power, power-bin selection, emitter configuration and package-integration requirements can be discussed
For component-level project evaluation, an Initial Product Report covering the Laser Diode Series and VCSEL Laser Diode Chip Series has been filed with the U.S. FDA CDRH. This filing supports technical documentation and product evaluation.
For applicable products, CE, EMC, EN 60825, LVD, RoHS, REACH and halogen-free certification and compliance documents are available. Documentation depends on the corresponding product model and does not represent certification of the customer’s finished device.
5. Frequently Asked Questions
FAQ 1. What packaging methods are suitable for the 680nm 50mW VCSEL Bare Die?
The device can be used for die attach, gold-wire bonding, ceramic-submount assembly, chip-on-submount assembly, custom SMD packages, TO-can packages, ceramic packages and high-output optical-module integration.
As an unpackaged die, it must be integrated using an appropriate mounting, bonding, thermal-path, package-design and optical-integration process.
FAQ 2. What is the positioning of the 680nm 50mW VCSEL Bare Die within the 680nm Bare Die Series?
The 680nm 50mW model is the 21-emitter high-output option in the 680nm VCSEL Bare Die Series.
It is suitable for customers requiring significantly higher optical output, larger emitter count and high-output red VCSEL chip integration. Compared with the 680nm 18mW six-emitter model, the 50mW model provides a higher-output route using a 21-emitter die structure and a larger 300±10μm × 300±10μm die footprint.
FAQ 3. Can the wavelength, optical output, power bin, emitter configuration or package configuration be customized?
Center wavelength, wavelength tolerance, optical output, power-bin selection, emitter configuration and package-integration requirements can be discussed according to the project.
Projects requiring different output levels or emitter layouts can select from the 680nm 5mW, 12mW, 18mW and 50mW VCSEL Bare Die models or submit a custom-development request.
