680nm 5/12/18/50mW VCSEL Bare Die Series
680nm 5/12/18/50mW VCSEL Bare Die Series for wire bonding, ceramic submount assembly, custom laser packaging and red VCSEL chip integration projects.
Specifications
- Product Type
- Multi-mode VCSEL Bare Die
- Wavelength
- 680 nm typ.
- Optical Output Power
- 5mW / 12mW / 18mW / 50mW class
- Emitter Configuration
- 1 / 4 / 6 / 21 Emitters
- Operating Mode
- QCW, 0.5ms Pulse Width, 1% Duty Cycle
- Die Size
- 200μm × 200μm / 170±10μm × 170±10μm / 163±10μm × 185±10μm / 300±10μm × 300±10μm
- Recommended Assembly
- Die Attach / Wire Bonding / Ceramic Submount / Custom Packaging
1. 680nm VCSEL Bare Die Supply for Packaging and Module Integration
The 680nm 5/12/18/50mW VCSEL Bare Die Series includes 680nm VCSEL chip and VCSEL laser chip options for customers sourcing visible-red bare die for packaging. The series covers 5mW, 12mW, 18mW and 50mW models with 1-emitter, 4-emitter, 6-emitter and 21-emitter layout options.
These 680nm pulse VCSEL devices use a multi-mode structure and are supplied as unpackaged dies for die attach, gold-wire bonding, ceramic-submount assembly and custom VCSEL packaging.
The different optical-output levels, emitter configurations and die dimensions allow packaging companies and module-development teams to select a suitable model according to package space, target output, emitter layout, drive-current condition and optical-module requirements.
The series is intended for:
- OSAT semiconductor assembly and test providers
- VCSEL and laser-diode packaging companies
- SMD, TO-can and ceramic laser-package manufacturers
- Die-attach and wire-bonding engineering teams
- Ceramic-submount and COB integrators
- Laser-module and optoelectronic-module manufacturers
- Lens, collimation and beam-shaping companies involved in laser-source integration
- Laser-component, bare-die and optical-module distributors
- Technical sourcing and second-source development teams
As a VCSEL bare die supplier, 1ONELASER supports OSAT VCSEL packaging, laser-diode packaging, ceramic-submount integration and custom optical-module development.
The bare die can be integrated into custom SMD packages, TO-can packages, ceramic packages, ceramic-submount assemblies and compact optical modules. As unpackaged semiconductor chips, the devices require suitable mounting, wire bonding, package design and optical integration before use in a finished device or module.
2. 5mW, 12mW, 18mW and 50mW Model Selection
The series includes one compact 1-emitter low-output VCSEL die, one 4-emitter balanced medium-output VCSEL die, one 6-emitter higher-output VCSEL die and one 21-emitter high-output VCSEL die, allowing customers to compare emitter count, die footprint, optical output and drive-current condition within the same 680nm product family.
Model | Optical Output Power | Emitter Configuration | Test Condition | Wavelength | Beam Divergence | Die Size |
|---|---|---|---|---|---|---|
680nm 5mW | 4.0–5.0mW, 5.0mW typ. | 1 Emitter | 10mA, 25°C, QCW | 675–680nm | 22° typ. | 200μm × 200μm |
680nm 12mW | 9.0–12mW, 12mW typ. | 4 Emitters | 20mA, 25°C, QCW | 675–680nm | 23° typ. | 170±10μm × 170±10μm |
680nm 18mW | 15–18mW, 18mW typ. | 6 Emitters | 30mA, 25°C, QCW | 675–680nm | 23° typ. | 163±10μm × 185±10μm |
680nm 50mW | 48–55mW, 55mW typ. | 21 Emitters | 140mA, 25°C, QCW | 675–680nm | 23° typ. | 300±10μm × 300±10μm |
The four models are specified under QCW conditions with a 0.5ms pulse width and 1% duty cycle. They produce a symmetrical annular, doughnut-shaped far-field profile.
680nm 5mW VCSEL Bare Die
The 680nm 5mW VCSEL chip is a compact 1-emitter, low-output bare die with a 200μm × 200μm footprint.
It is suitable for low-output VCSEL packaging, compact visible-red source packaging, initial VCSEL die-attach development, gold-wire bonding process evaluation and compact optical-module development.
This low-output red VCSEL die is intended for projects requiring a simple emitter layout, relatively low drive current and compact chip-level integration.
680nm 12mW VCSEL Bare Die
The 680nm 12mW VCSEL chip uses a 4-emitter layout within a compact 170±10μm × 170±10μm die.
It provides balanced medium-output optical performance under a 20mA test condition and is suitable for 4-emitter VCSEL packaging, ceramic-submount integration, custom SMD laser packages and visible-red optical modules.
This model is positioned for projects requiring higher output than the 5mW model while maintaining a square die footprint and moderate multi-emitter layout complexity.
680nm 18mW VCSEL Bare Die
The 680nm 18mW VCSEL chip uses six emitters in a compact, non-square die measuring 163±10μm × 185±10μm.
This six-emitter 680nm VCSEL provides higher optical output under a 30mA test condition and is suitable for compact multi-emitter VCSEL packaging, higher-output visible-red modules, ceramic-submount integration and custom laser packages requiring increased emitter density.
680nm 50mW VCSEL Bare Die

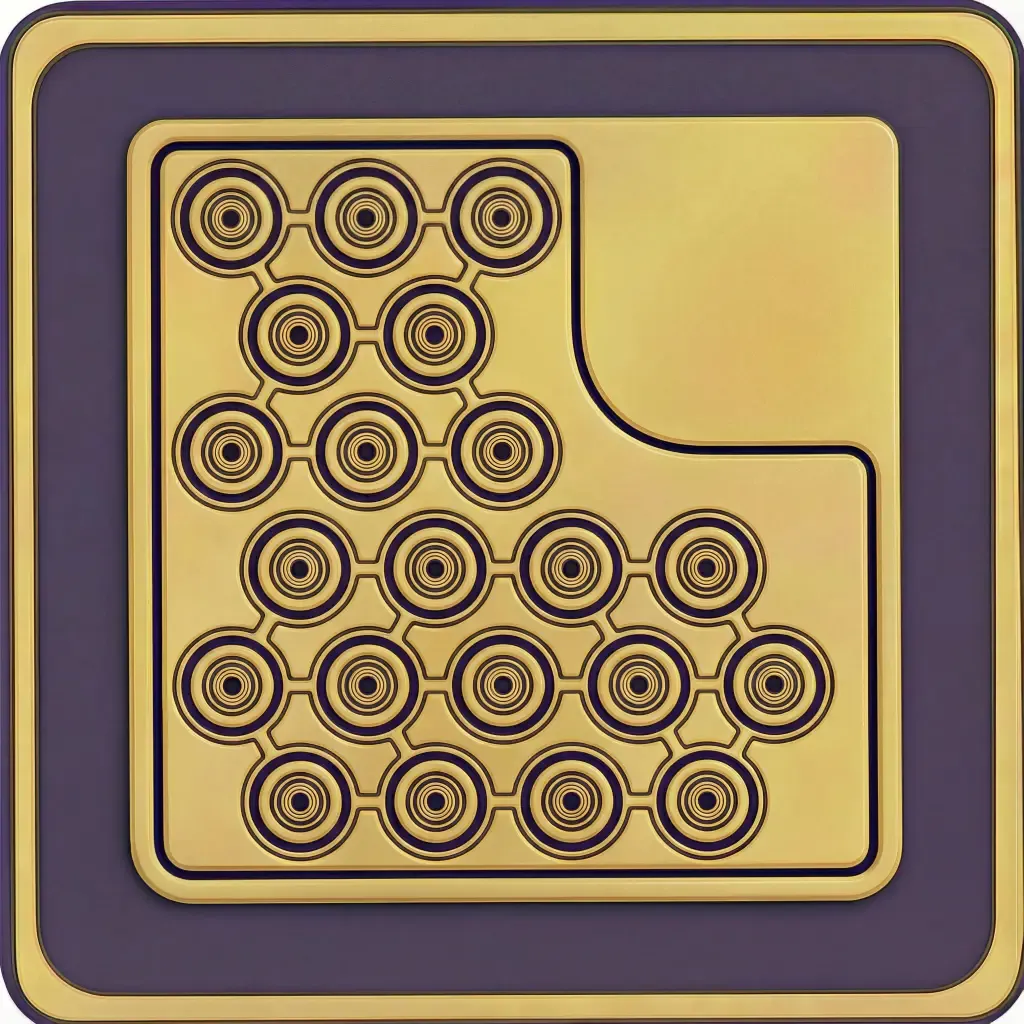

The 680nm 50mW VCSEL chip uses a 21-emitter layout in a larger 300±10μm × 300±10μm die.
This high-output 680nm VCSEL die provides 55mW typ. optical output under a 140mA test condition and is suitable for high-output visible-red optical-source packaging, larger custom laser packages, ceramic-submount integration and module projects requiring significantly higher emitter count and optical output.
3. Packaging, Optical Module and Application Development
OSAT and Custom VCSEL Packaging
The devices can be supplied as VCSEL die for packaging in wire-bonded ceramic-submount assemblies, custom SMD packages, TO-can packages, ceramic laser packages and application-specific optical modules.
Packaging and integration directions include:
- VCSEL die attach
- Gold-wire bonding
- Ceramic-submount assembly
- Custom VCSEL packaging
- Custom SMD laser packages
- TO-can laser packages
- Ceramic laser packages
- COB and compact optical-source modules
- Multi-emitter VCSEL modules
- High-output visible-red VCSEL packages
- Application-specific laser-device packages
The range of output powers and emitter configurations allows packaging companies to select a device according to package dimensions, bond-pad layout, optical-output requirements, drive-current condition and module structure.
Lens and Beam-Shaping Integration
The series can also support optical lens, collimation and beam-shaping companies developing integrated laser-source assemblies.
Possible integration directions include:
- Collimation-lens assemblies
- Beam-shaping optical components
- Diffuser-integrated modules
- Lens-integrated VCSEL sources
- Compact visible-red optical assemblies
- 4-emitter, 6-emitter and 21-emitter red VCSEL source modules
- Higher-output red-light optical modules
- High-output visible-red optical-source assemblies
The 5mW, 12mW, 18mW and 50mW models allow engineering teams to compare emitter layouts, far-field distribution, lens dimensions and module configurations within the same 680nm visible-red VCSEL chip family.
Laser and Optical Module Development
The 680nm red VCSEL bare die series can be used in:
- Visible-red laser modules
- Sensor light sources
- Consumer-electronics light sources
- Machine-vision support illumination
- Alignment and indication systems
- Engineering and research light sources
- Custom optoelectronic modules
- High-output red-light source modules
The corresponding datasheets identify sensor light sources, consumer electronics, machine vision and red lighting as application directions.
Medical Beauty and Red-Light Product Development
The series can also support beauty and personal-care prototypes, photobiomodulation-related optical development, hair-growth and scalp-light devices, and other projects requiring a 680nm visible-red source.
These are downstream applications after the VCSEL bare die has been integrated into an appropriate package or optical module. The primary focus of this page remains bare-die supply, packaging, wire bonding and module integration.
Distribution and Supply-Chain Support
The 680nm VCSEL Bare Die Series is also available to laser-component distributors, optical-module agents, technical sourcing companies and second-source development teams supporting customer packaging and integration projects.
4. Evaluation Kit and Documentation Support
The 680nm VCSEL Bare Die Series is available as an Evaluation Kit for packaging trials, die-attach development, gold-wire bonding verification and initial optical integration.
- 10 pcs / KIT
- One selected model per kit: 5mW, 12mW, 18mW or 50mW
- Corresponding product datasheet and die-dimension documentation
- International shipping quoted according to destination
- Center wavelength, wavelength tolerance, optical output power, power-bin selection and emitter-configuration requirements can be discussed
For component-level project evaluation, an Initial Product Report covering the Laser Diode Series and VCSEL Laser Diode Chip Series has been filed with the U.S. FDA CDRH. This filing supports technical documentation and product evaluation.
For applicable products, CE, EMC, EN 60825, LVD, RoHS, REACH and halogen-free certification and compliance documents are available. Documentation depends on the corresponding product model and does not represent certification of the customer’s finished device.
5. Frequently Asked Questions
FAQ 1. What is the difference between the 5mW, 12mW, 18mW and 50mW 680nm VCSEL bare die models?
The main differences are optical output power, emitter count, die dimensions and test current.
- The 5mW VCSEL chip uses a 1-emitter layout and a 200μm × 200μm die for low-output VCSEL packaging and compact optical-module development.
- The 12mW VCSEL chip uses four emitters in a 170±10μm × 170±10μm die for balanced medium-output multi-emitter modules.
- The 18mW VCSEL chip uses six emitters in a 163±10μm × 185±10μm die for higher-output, compact multi-emitter packaging.
- The 50mW VCSEL chip uses 21 emitters in a 300±10μm × 300±10μm die for high-output visible-red optical-source packaging.
The appropriate model depends on the target optical output, available die space, emitter layout, package structure, drive-current condition and module-integration requirements.
FAQ 2. What packaging methods are suitable for the 680nm VCSEL Bare Die Series?
The series can be used for VCSEL die attach, gold-wire bonding, ceramic-submount assembly, custom SMD packages, TO-can packages, ceramic packages and compact optical-module integration.
The unpackaged die must be integrated using an appropriate mounting, bonding, thermal-path and package design. 1ONELASER can discuss bare-die supply, power-bin selection, emitter configuration and custom VCSEL packaging according to project requirements.
FAQ 3. How is the 680nm VCSEL Bare Die Series different from the 680nm VCSEL SMD Series?
The 680nm VCSEL Bare Die Series supplies unpackaged VCSEL chips for OSAT providers, laser-packaging companies, die-attach and wire-bonding teams, ceramic-submount integrators and optical-module manufacturers.
The 680nm VCSEL SMD Series consists of completed surface-mount devices intended for SMT placement, reflow soldering and direct PCB integration.
For customers developing finished PCB-level light-source products, SMD packages may be more suitable. For customers developing their own package, ceramic submount, TO-can device, optical module or customized laser-source structure, the VCSEL Bare Die Series is the more flexible option.
